Description
DC Power supply

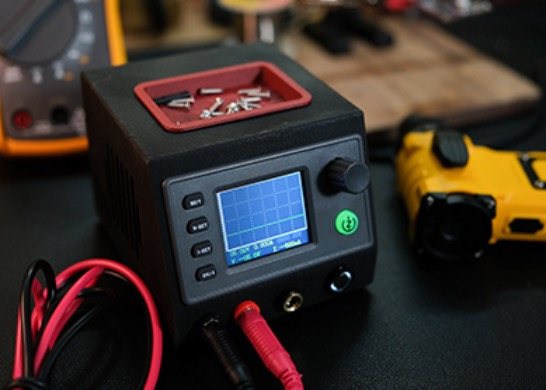

This is a portable power station that I designed for personal electronics repair purposes. It includes the following features:
DC power output from 1V to 30V with a maximum current of 5A
USB-C input/output port (100W) for charging the internal 4S battery pack
A removable tray on top for storing small items or tools
Uses standard 12mm push buttons, basic power connectors, and 5.5mm DC jacks
https://www.aliexpress.com/item/3256807233168109.html?gatewayAdapt=4itemAdapt

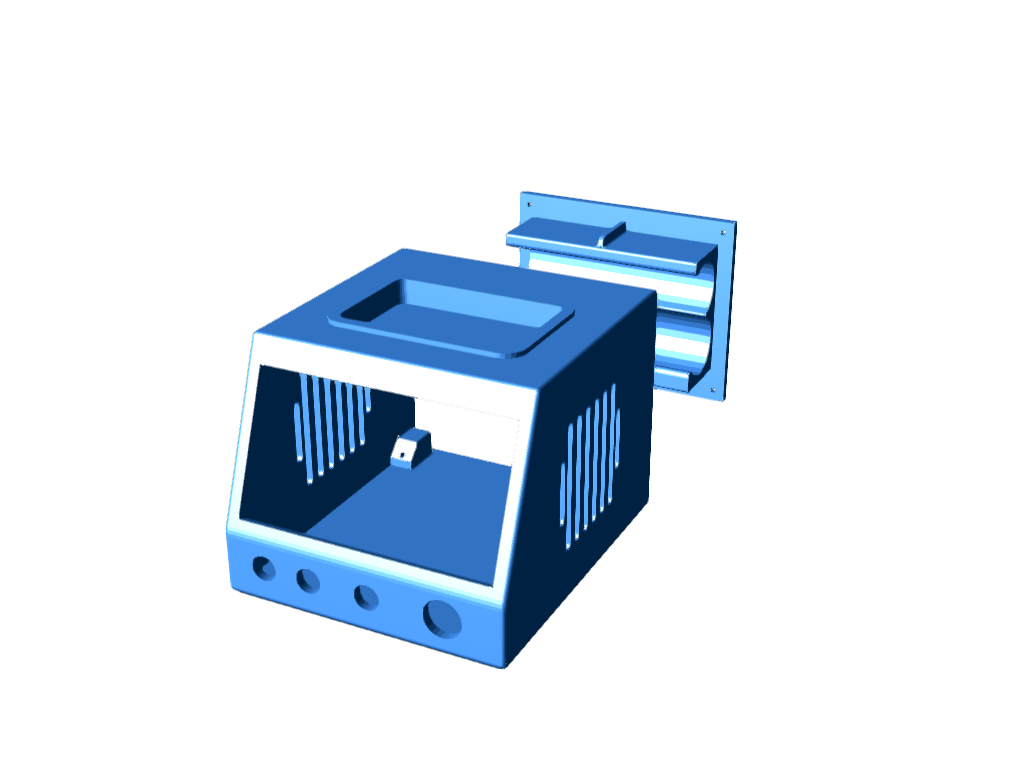

CAD-Custom parts and enclosures
DC Power Supply by Ariel
Power mini.step
Aug 15,2025
202 views
DC Power supply
DC power supply
202
0
0
Published: Aug 15,2025
PCBWay Donate 10% cost To Author
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
