This project is a compact breadboard power supply module designed to provide reliable regulated voltages for electronic prototyping. The module can be plugged directly into a standard breadboard and supplies 3.3V and 5V outputs for microcontrollers, sensors, and other electronic circuits.

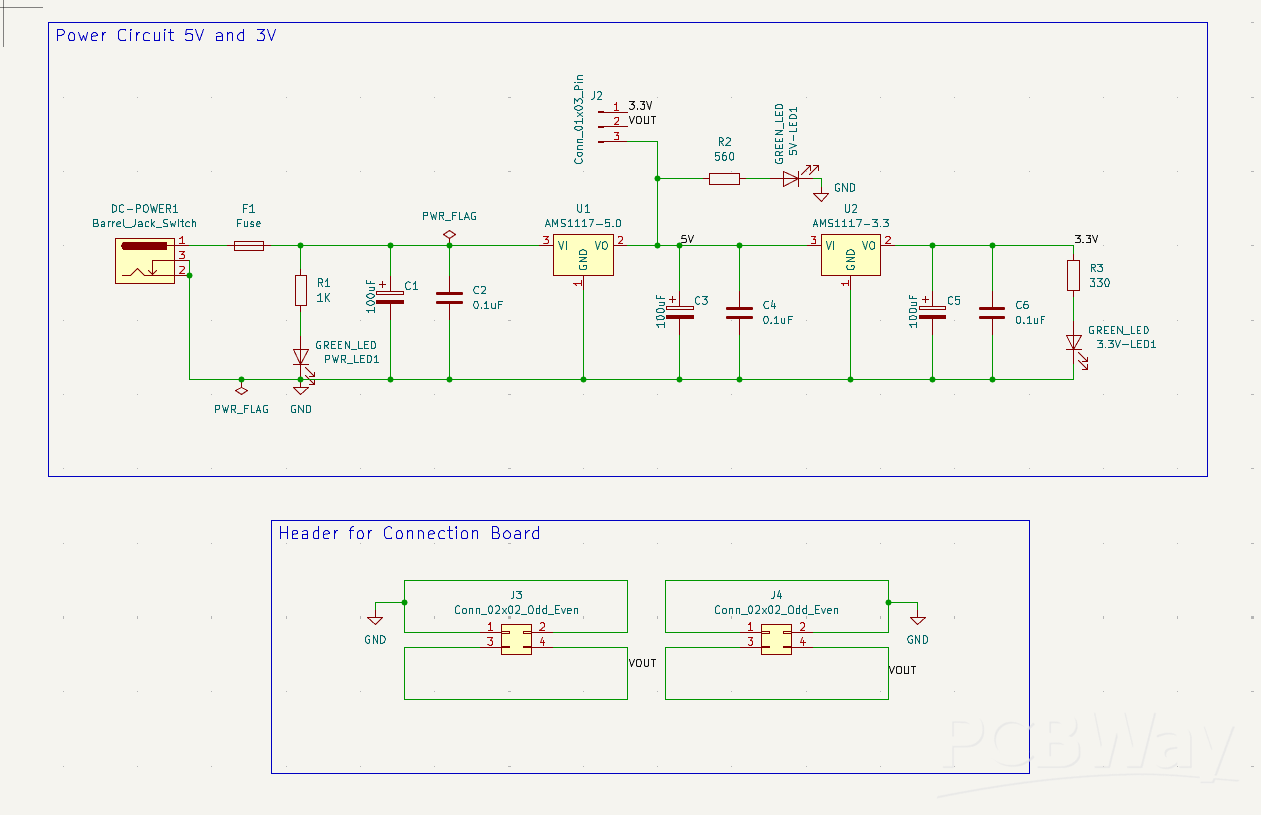

The circuit includes voltage regulation, power filtering capacitors, and indicator LEDs to ensure stable operation. The design helps students, hobbyists, and embedded system developers quickly power their breadboard circuits without the need for external bench power supplies.

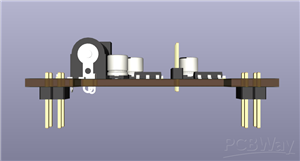

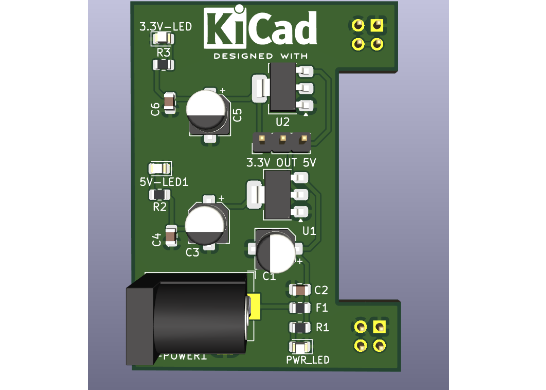

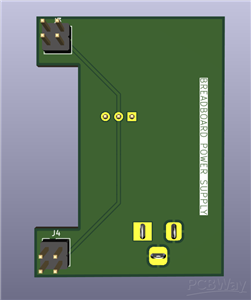

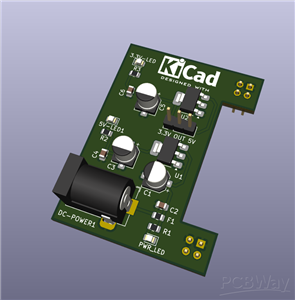

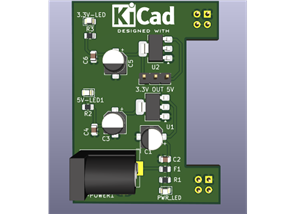

The PCB was designed using KiCad with a focus on compact size, ease of use, and manufacturability. The board can be powered through a DC input source and distributes regulated power to both sides of the breadboard.

Features:-

Provides regulated 3.3V and 5V outputs

Direct breadboard compatibility

LED power indication

Compact PCB design

Suitable for Arduino, ESP32, STM32, and sensor projects

Easy to manufacture and assemble

Applications:-

Electronics prototyping

Embedded systems development

Educational laboratory experiments

IoT projects

Sensor testing and development
