Commodore 64 Audio Video Adapter

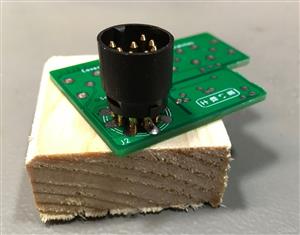

An A/V-adaptor board for the C64 This board is intended to connect to the Commodore C64 and use standard cables (audio, composite with RCA connector and/or s-video with a mini-DIN cable).
It also provides a 330Ohm connector, which attenuates the s-video chroma line. This resistor can be bridged with a jumper.
Also an optional stereo output on pin 7 of the a/v jack (stereo sid, FPGA SID etc.) can be connected to the right audio channel. By default, this channel is also connected to the (mono) audio output.
Project by Sven Petersen
project home: https://github.com/svenpetersen1965/C64-A-V-Adaptor
Jun 06,2021
