Clocodile clock

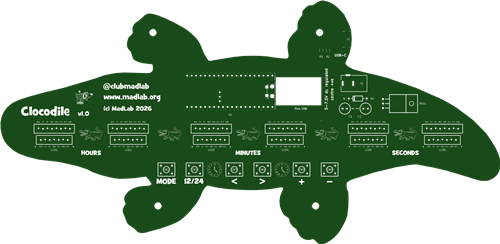

A novel clock with a PCB in the shape of a crocodile (hence the name 'Clocodile') with six small circular LCDs displaying hours, minutes and seconds.
Powered by a Raspberry Pi Pico 2 W which allows the current time to be fetched over the internet using NTP.

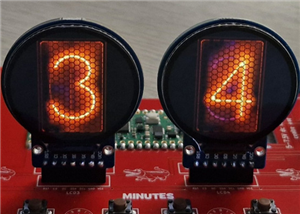

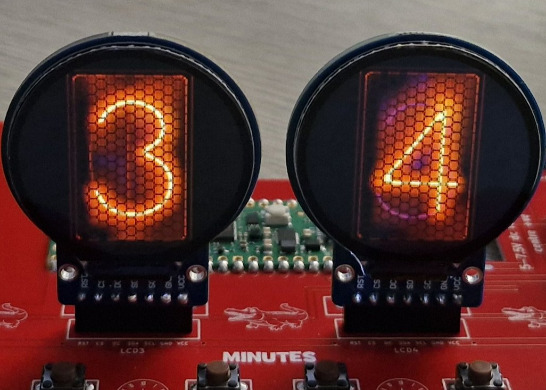

Multiple fonts are available including classic red and blue 7-segment LEDs as well as an amber-backlit 7-segment LCD, flip digits, various whimsical and animal fonts and of course there is a Nixie tube set. Finally a ‘Matrix raining code’ mode with digits falling down the screen.
In addition to the fonts a number of transitions from one digit to the next are available such as slides and scrolls, blinds, expansions and dissolves, as well as a realistic mode for the flip digits.
Can be powered via micro USB, USB-C or a DC power supply.
Playlist https://www.youtube.com/playlist?list=PLc0NQSYwZILU
