Description
Christmas tree - addressable rgb leds

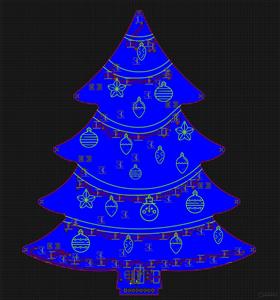

this is an experimental pcb, it has an attiny 85 onboard for controlling the led ws2812 (2020) package, it has a 1.27mmpin connector for debugging and for burning the bootloader to the attiny , no battery power sorry maybe in the next revision , i wanted to create also a base with a usb c port in such a way one could power it up by using an usbC charger.
hope you like the pcb
Schematic and Layout
