Description
limiter_plate
This project addresses issues where exhaust valve actuators rotate beyond their intended range when aftermarket exhaust components are installed. The limiter plate provides a mechanical stop to prevent diagnostic trouble codes (DTCs) and dashboard warning lights.

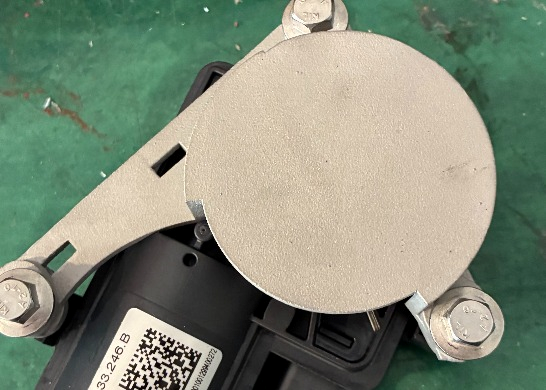

The design features a lightweight aluminum or stainless steel plate that mounts between the actuator and the mounting bracket, restricting the sweep of the actuator arm to the OEM specification. Compatible with Audi 2025 SQ5.
Code
valve_actuator_limiter
https://github.com/picklethecat1488-hue/hardware/blob/main/src__/projects/valve_actuator_limiter/provider.py
Schematic and Layout
valve_actuator_limiter_diagram.svg
https://github.com/picklethecat1488-hue/hardware/blob/main/src__/projects/valve_actuator_limiter_diagram.svg
CAD-Custom parts and enclosures
C-2CN26W908185A_limiter_plate
C-2CN26W908185A_limiter_plate.stl
Jul 03,2026
16 views

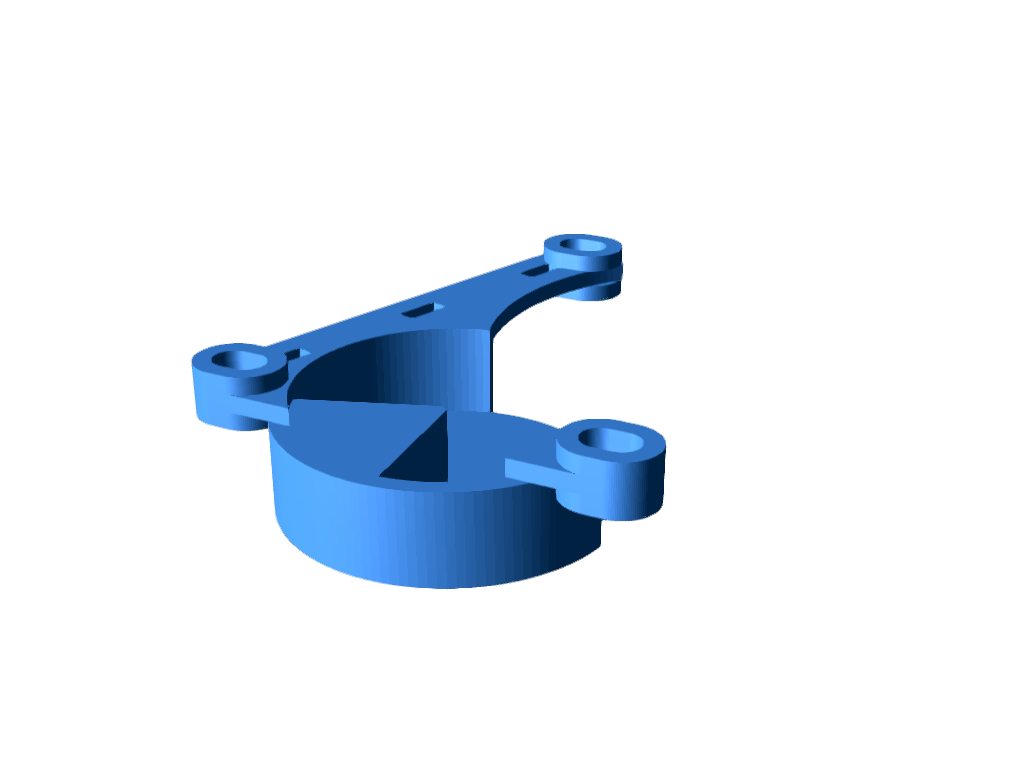

limiter_plate
This is a Valve Actuator Limiter block off plate, Audi SQ5 compatible, designed to mitigate exhaust code P047600 on cars with custom exhaust
16
0
0
Published: Jul 03,2026
PCBWay Donate 10% cost To Author
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
