62256 SRAM, SOP-28_8.4x18.16mm_P1.27mm, 256K (32K x 8) Static RAM, 70ns, DIP-28 (U6) |
x 1 | |
|
|
Male Pin Header |
x 1 |
|
EagleAutodesk
|

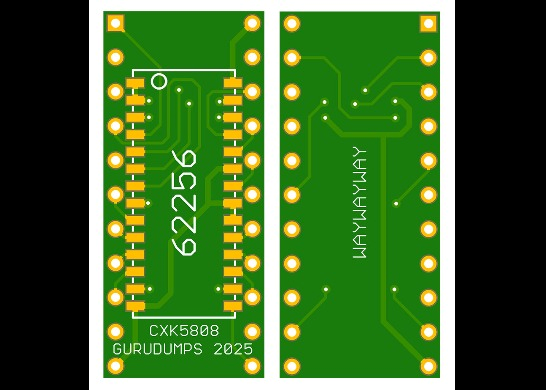

CXK5808 Adapter
Small adapter to convert a modern common 62256 static RAM into a rare/obsolete CXK5808 1kBx8-bit Static RAM, footprint same size as original. The original chip can't be bought for *any* money.... problem solved ;-)
This can be used to repair something that is broken by using modern parts to replace the old obsolete RAM and it fits in the same space as the original part. These obsolete RAMs are used on some 80's arcade games for example.
BOM: 1x 62256 SOJ28 Static RAM, 1x male pin header 40 pin strip (cut to size 2x 11 pins)
CXK5808 Adapter
