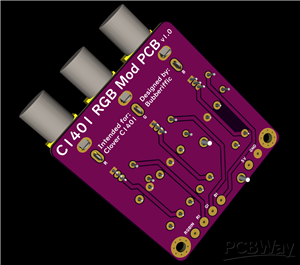

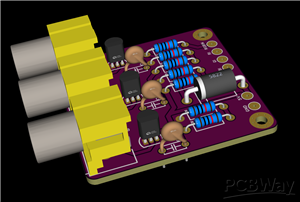

C1401 CRT RGB Mod

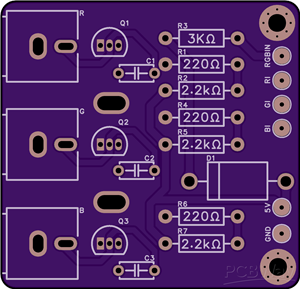

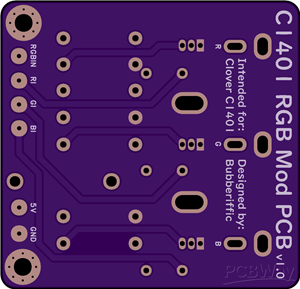

This is a custom PCB board that takes Analog RGB-in and uses sync through Composite.
It can be used with any retro console that outputs RGB analog video.
Information on how to install this board into a Clover-C1401 can be viewed here:
https://bitbuilt.net/forums/threads/clover-c1401-rgb-mod.7460/
Make sure to install any type of non-momentary switch or button in series with the 5V line going between the micro-controller and the 5V pad on the custom PCB.
Feel free to reach out with any questions!
C1401 CRT RGB Mod
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
For more important ordering information, please refer to
Read More
