Arduino Uno SMD with Integrated MPU-6050 + BMP280

Project Overview

This project is an enhanced Arduino Uno-compatible development board based on the Arduino Uno SMD design.

The main idea is to integrate useful sensors directly onto the Arduino PCB instead of requiring separate breakout boards, additional wiring, and mechanical mounting.

This version integrates two sensors directly onto the board:

MPU-6050 6-axis IMU

Bosch BMP280 barometric pressure and temperature sensor

Both sensors are connected internally through the I²C interface, with the required voltage-level translation and supporting circuitry integrated into the PCB.

The result is a compact Arduino Uno-compatible board that combines the normal Uno functionality with onboard motion, pressure, temperature, and altitude-sensing capabilities.

Why This Project Exists

Adding sensors to an Arduino project normally requires additional breakout boards.

For a project using an IMU and barometric sensor, this can result in:

Multiple PCBs

Additional jumper wires

More connectors

Extra mechanical mounting

Increased space requirements

Less consistent sensor positioning

This becomes particularly inconvenient in compact robotics and embedded projects.

By placing the sensors directly onto the Arduino PCB, the sensor positions are fixed relative to the controller.

This reduces wiring and mechanical complexity while providing a repeatable physical arrangement between the sensors and the rest of the electronics.

Integrated MPU-6050 IMU

The board contains an onboard MPU-6050.

The MPU-6050 provides:

3-axis accelerometer

3-axis gyroscope

Motion sensing

I²C communication

The sensor is mounted directly on the PCB rather than on a separate breakout board.

This makes the board useful for applications involving motion measurement, robotics, orientation experiments, acceleration measurements, and sensor-fusion projects.

The MPU-6050 is connected to the Arduino's I²C interface through the onboard voltage-level translation circuitry.

Integrated BMP280

The second integrated sensor is the Bosch BMP280.

The BMP280 provides:

Atmospheric pressure measurement

Temperature measurement

Pressure-based altitude estimation

I²C communication

Integrating the BMP280 directly onto the PCB allows pressure and temperature measurements to be performed without adding another external sensor board.

Combined with the MPU-6050, the board can be used for experiments involving both motion and environmental measurements.

Dual-Sensor I²C Architecture

Both sensors communicate using I²C.

The Arduino operates in its normal 5 V environment, while the integrated sensors use their appropriate lower-voltage supply and logic levels.

To handle this, the PCB incorporates a TXS0104ED bidirectional voltage-level translator.

The board also includes the required I²C pull-up resistors and supporting circuitry.

This means that the voltage-level conversion is handled internally.

The user does not need to add a separate external level-shifter board just to connect the integrated sensors to the Arduino.

Arduino Uno-Compatible Core

The board retains the core architecture of an Arduino Uno.

The main controller is:

ATmega328P-MU

The USB interface is handled by:

ATmega16U2-MU

This keeps the familiar Arduino Uno architecture while adding additional onboard hardware.

The standard Arduino-style expansion headers remain available, so external sensors, displays, motor controllers, and other peripherals can still be connected.

The integrated sensors therefore supplement the Uno rather than replacing its normal expansion capabilities.

USB Type-C

The board uses a USB Type-C connector.

The USB interface retains the functionality provided by the ATmega16U2 while using a modern USB-C physical connector.

This makes the board more convenient to connect to modern computers and USB-C cables.

Power Architecture

The board includes both 5 V and 3.3 V power circuitry.

The design includes:

5 V regulation

3.3 V regulation

USB power input

Barrel-jack power input

Power protection

Polyfuse protection

Reverse-polarity protection

Ferrite filtering

Local decoupling

The 3.3 V rail is used for the integrated sensor circuitry.

This keeps the sensor power requirements internal to the board.

Additional Hardware

Along with the two integrated sensors, the board includes the supporting hardware required to operate as a complete Arduino-compatible development board.

The design includes:

ATmega328P-MU

ATmega16U2-MU

USB Type-C

Arduino-compatible headers

Barrel-jack power input

Reset switch

Status LEDs

5 V regulator

3.3 V regulator

TXS0104ED level translator

MPU-6050

BMP280

I²C pull-up resistors

Power protection

Decoupling capacitors

Filtering components

Mechanical Advantages

One of the main goals of the project is to reduce the mechanical complexity associated with using sensor breakout boards.

With conventional breakout boards, the sensors have to be mounted somewhere around the Arduino.

That can create problems in compact designs where every millimeter of PCB and mechanical space matters.

Here, the sensors are already part of the Arduino PCB.

Their location and orientation relative to the main controller remain fixed from board to board.

This can be useful when developing robotics platforms where the sensor coordinate system needs to have a consistent relationship with the rest of the robot.

Robotics Applications

The combination of an onboard IMU and barometric sensor makes the board particularly suitable for robotics and embedded experiments.

Possible applications include:

Robotics

Motion sensing

Self-balancing systems

Altitude experiments

Environmental monitoring

Autonomous systems

Sensor fusion

Motion logging

Physics experiments

Educational projects

Compact embedded systems

Arduino-based research and prototyping

For example, the MPU-6050 can provide acceleration and gyroscope data while the BMP280 provides pressure and temperature measurements.

Both can be processed by the ATmega328P.

Fabrication-Ready Design

The project includes the files required to reproduce the board rather than being only a conceptual design.

The repository contains:

KiCad schematic

KiCad PCB layout

Component footprints

BOM

Component designators

Component placement data

IPC netlist

Production files

Gerber/fabrication package

3D/STEP-related files

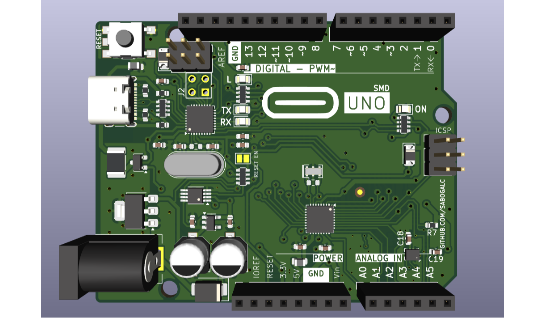

PCB models and renders

The production directory also contains a packaged fabrication output together with the BOM, placement data, designators, and IPC netlist.

This makes the project suitable for PCB fabrication and assembly.

Open Hardware Development

This project is part of an ongoing collection of modified Arduino-compatible hardware designs.

The objective is to take familiar development-board architectures and integrate useful functionality directly onto the PCB.

Instead of building a project from an Arduino plus several separate breakout boards, the goal is to create a single board that already contains commonly required hardware.

The design files are publicly available so that other makers, students, robotics enthusiasts, and electronics developers can inspect, modify, and manufacture the design.

Possible Future Development

This project can serve as a foundation for future Arduino-compatible boards with additional integrated peripherals.

Possible future additions include:

Additional environmental sensors

Displays

Data logging

Wireless connectivity

Additional robotics interfaces

More onboard measurement capabilities

The overall concept is to progressively turn the familiar Arduino Uno form factor into a more capable integrated development platform while maintaining its basic compatibility and expansion interface.

Credits

The underlying Arduino Uno SMD KiCad design was based on the work of sabogalc.

This project modifies and extends that design by integrating the MPU-6050, BMP280, voltage-level translation, associated power circuitry, and manufacturing data.

Project Repository

The complete project is available here:

GitHub:

https://github.com/kaustubh850/ArduinoEquipped

Project:

Arduino Uno IMU+BMP280

The repository contains the design and manufacturing files needed to inspect, modify, and reproduce the board.

Project Goal

The goal of this project is to make an Arduino Uno more capable without requiring the user to build an entire collection of external sensor modules around it.

By integrating the MPU-6050 and BMP280 directly onto the Arduino PCB, the board combines:

Arduino control + motion sensing + pressure sensing + temperature sensing

into a single compact development board while retaining the familiar Arduino Uno expansion interface.
