Antithesis MK3.1 Bed Heater V0.1

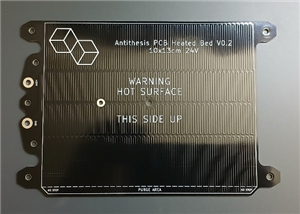

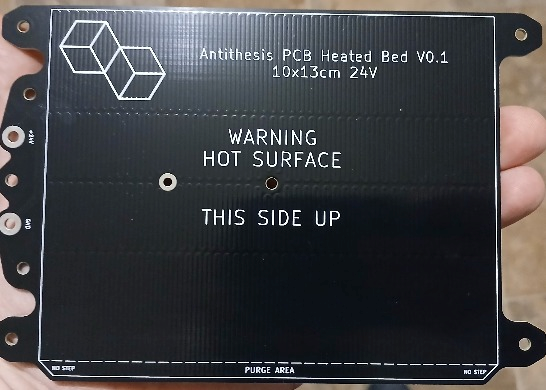

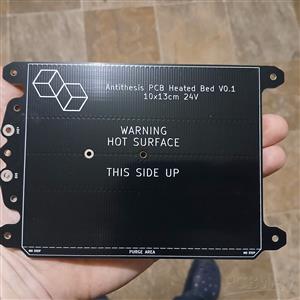

The PCB Trace Heater for the Antithesis MK3.1 3D printer. It replaces the older CF build plate as a much cheaper and lighter alternative.
Specifications:
- Size: 10x13cm
- Thickness: 1.6mm
- Voltage: 24VDC
- Power 108W
- Current: 4.5A
- Resistance: 5.33Ω
- W/cm²: 0.75 to 0.825
- Max Temp: 110C
- Time to 100C: 2 Minutes 15 Seconds
- Unassembled Weight: 56g
- Assembled Weight: 190g
Jun 03,2025
342 views
Antithesis MK3.1 Bed Heater V0.1

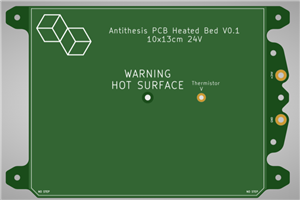

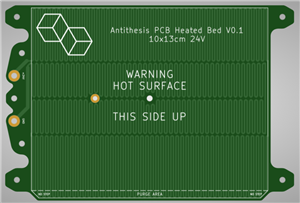

2 Layers PCB 108 x 159 mm FR-4, 1.6 mm, 1, HASL with lead, Black Solder Mask, White silkscreen
