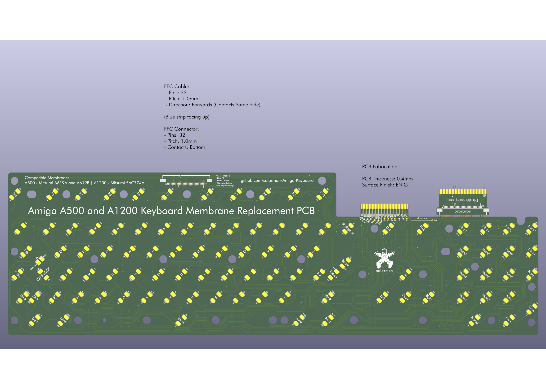

Amiga A1200/A500 Keyboard Membrane Replacement PCB

Fabrication

IMPORTANT!!!

For PCB fabrication, use:

• PCB Thickness: 0.4mm
• Surface Finish: ENIG

For use with A500

• Compatible with original Mitsumi A619A (Large ENTER key) and A619B (Small ENTER key) membranes.
• NOT Compatible with: Original Samsung 312502-12 (dual) membranes.
• Note: Remove the snap-away connector (used for A1200)

For use with A1200

• Compatible with original Mitsumi 56C774A
• Note: Use the snap-away connector

• Additional components required:

• FFC Connector (x2):
• 32 pins, 1mm pitch, bottom contact

• FFC cable (x1):
• 32 pins, 1mm pitch, same side (forward direction) contacts, 100mm
