AGC for UBIX radio. Cloned.
AGC for the UBIX V6 (and other) Radio's. This is not my design, but after finding the KIT had gone obsolete I decided to clone the board as its open source. I am not responsible for the design, and the layout is as close to a copy as I can make. See BOM for Mouser stock numbers. Although parts are widely available so shop around.

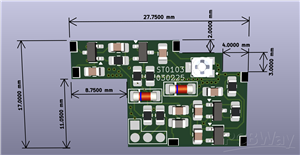

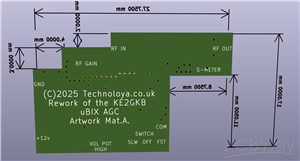

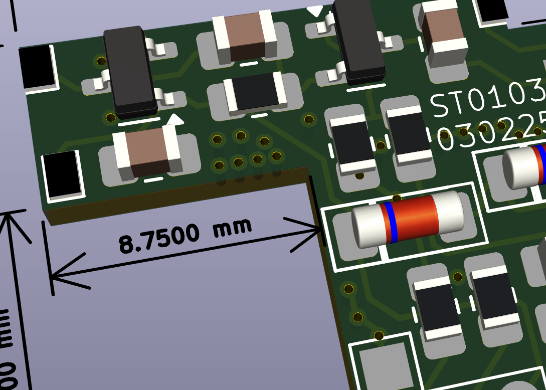

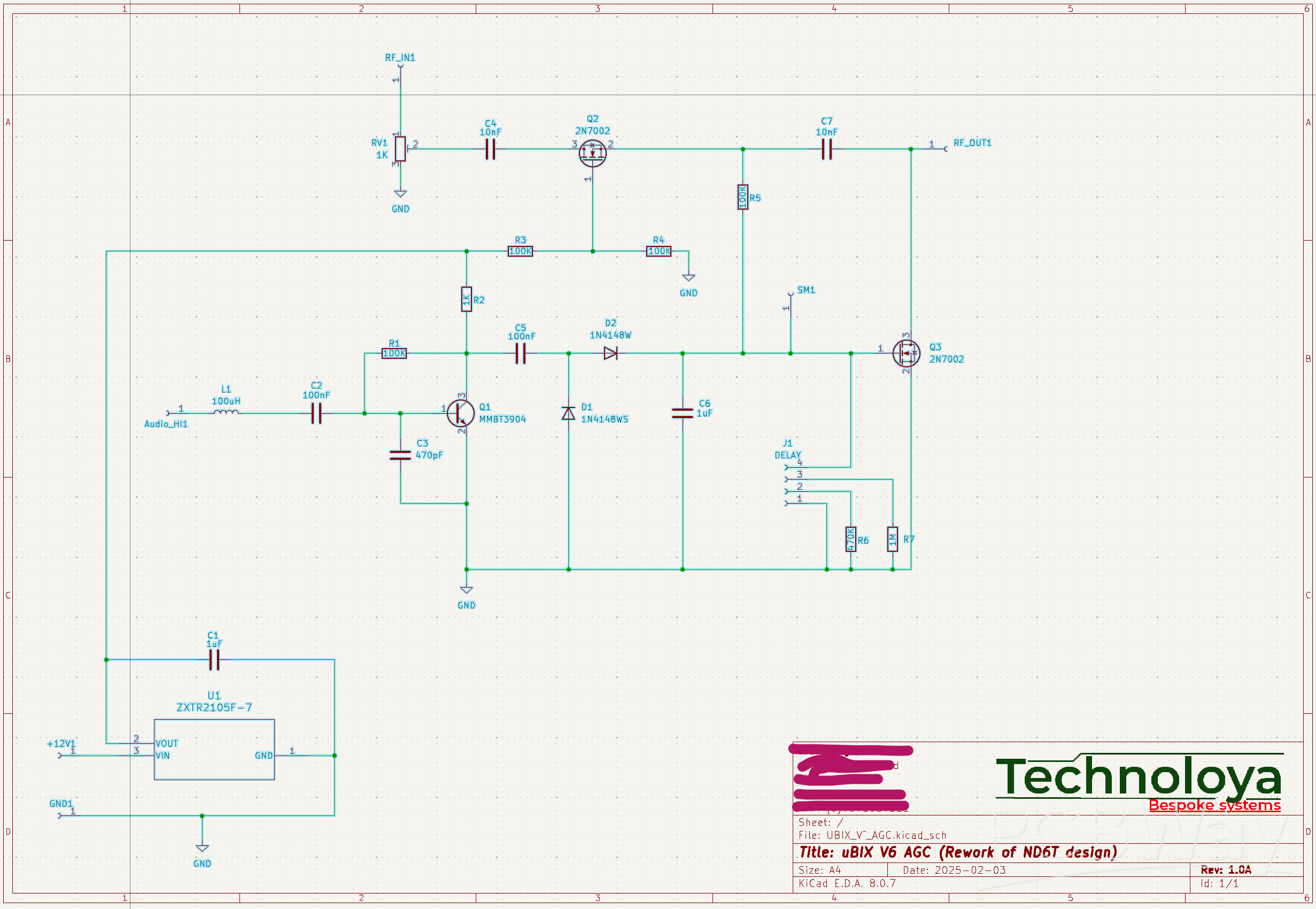

Schematic and Layout
Feb 12,2025
253 views
AGC for UBIX radio. Cloned.
This is a copy of the AGC circuit for the UBIX radio by ND6T . I got fed up trying to find this kit. (EOL). Mouser stock all parts
