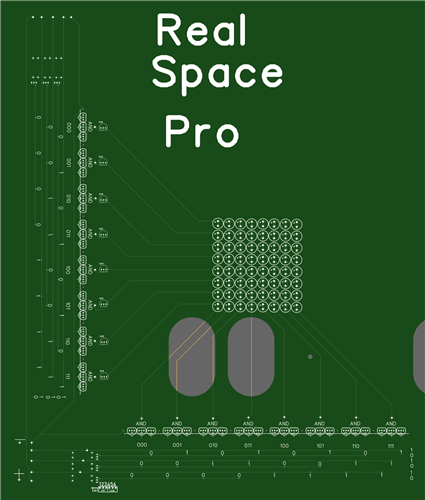

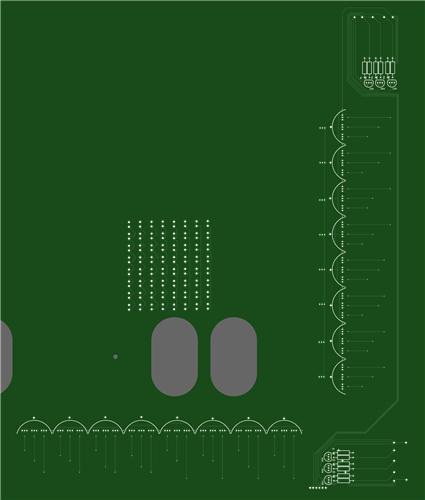

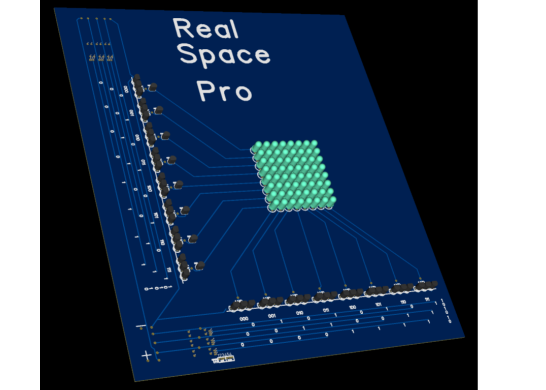

8x8 matrix with 3 bit binary decoder
i spent hours apon hours designing this ic freebinary decoder 8x8 matrix! it only needs 6 wires instead of 64 or 16 from regular non binary decoder matricies and it will work well for making diy computers and other diy devices
pleasse enjoy this matrix
8x8 matrix with 3 bit binary decoder
