8 Bit Cpu Clock Board

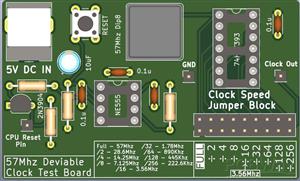

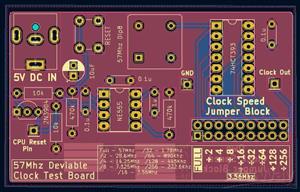

I need a simple CPU clock for an 8 Bit pc i was fixing and decided to make one that was of more use than just a 3.5Mhz one

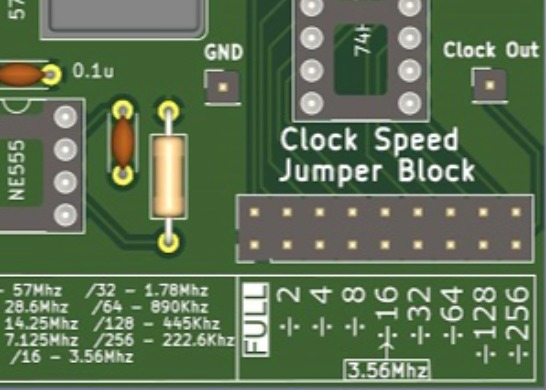

this unit can Divide the 57Mhz clock down in Half to 222.6Khz Clock
it also has a Reset and can use a normal 5V DC wall wart.. (power pack) (Pos middle).
*** v1.1 (I have put a Gnd post on the board if needed and i also rounded the corners)
*** v1.2 (I have put the CPU reset pin on that i forgot last time..)

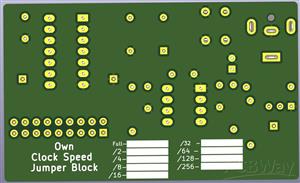

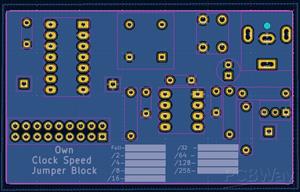

*** v1.3 (added the option to put you own clock numbers on the back)
