3 Fin Alignment Jig

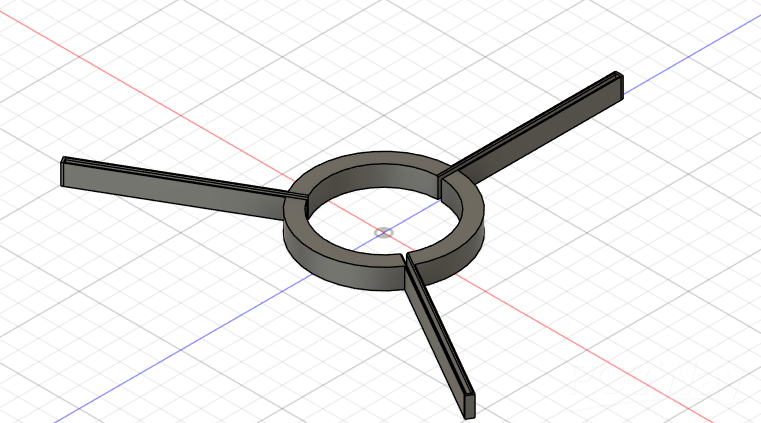

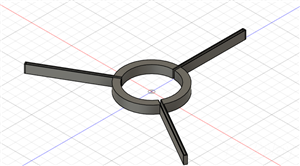

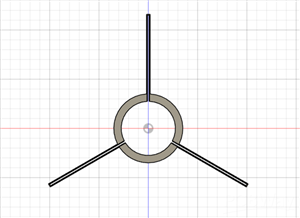

Need a perfect alignment jig for your next 3-fin rocket? Well, look no further! Each slot is exactly 120 degrees apart to suit your rocket! ***IMPORTANT***

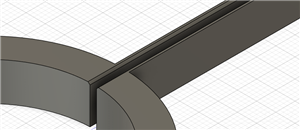

The slots that the fins slide into are 0.17 inches in width. They were designed to meet the standards of my 0.16-inch fins for my DeltaShift rocket. To modify the width of these slots, just download the attached file and import it into Fusion360 or OnShape and change the dimensions. This fin jig is highly customizable!
