Product Description

USB HUB Splitter Hub driveless 4-port USB3.2 Gen1

Introduction:

This is a 4-channel USB 3.2 Gen1 expansion board of Raspberry Pi, which can expand one USB port on Raspberry Pi to four available USB ports, so that your Raspberry Pi can access more USB devices.

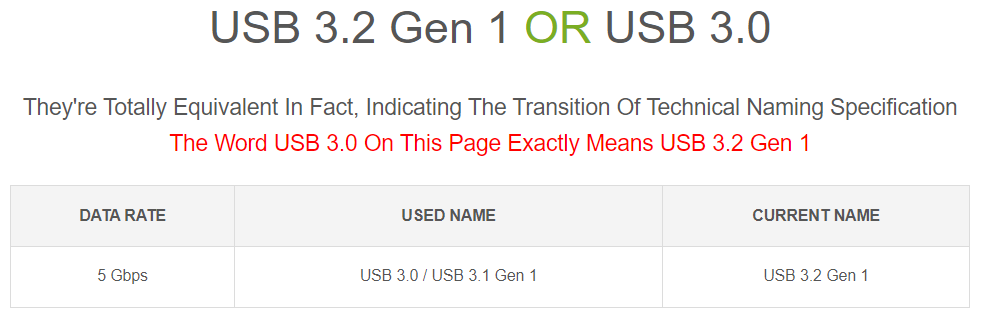

Based on Raspberry Pi 40PIN interface design, it is tailored for the 4th generation of Raspberry Pi, and adopts USB 3.2 Gen1 standard, which can provide transmission speed up to 5 Gbps, 10 times faster than USB 2.0.


Features:

  • Four USB 3.2 Gen1 expansion ports on board, compatible with USB 3.0/2.0 /1.1 transmission
  • External onboard Type-C 5V DC power supply interface can ensure more stable power supply for external devices.
  • On-board 1 power indicator and 4 USB expansion interface indicators are convenient to check the working status.
  • Driver-free, plug and play, compatible with Windows, mac OS, Linux, Android and other systems
  • Designed for the 4th generation of Raspberry pie, it is also suitable for other motherboards of Raspberry pi.
