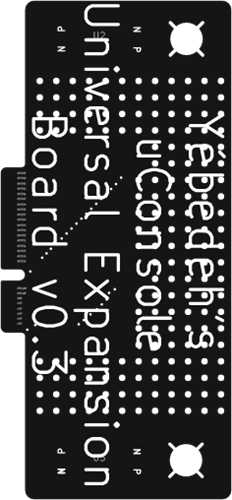

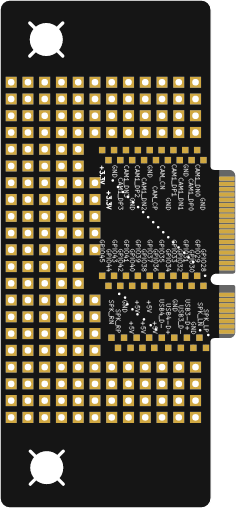

uConsole Universal Expansion Board, 2.54mm grid. - 1mm thickness PCB
Universal Breakout Expansion Board for Clockworkpi uConsole.
The second batch has been already tested!
You all can order now. As a first demo, I made this 2xUSB port expansion board, one internal, and 2x15 GPIO headers to connect the internal GPIO (not soldered yet). In the internal USB port, I plugged inside an USB2emmc with an emmc memory. I plan to put a microphone dongle thumb on the other USB port.
Take a look:
Visit the project at github if you would like to open an issue.
https://github.com/crossplatformdev/uConsole-Universal-Expansion-Board/
