nrf24l01 Universal Receiver
📡 Universal nRF24L01 Receiver – RX-nRF24L01

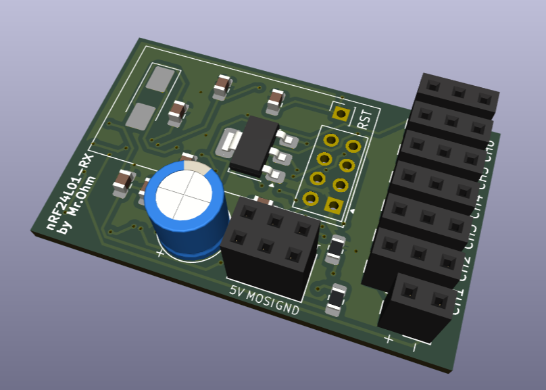

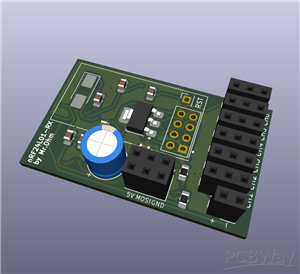

This is a versatile receiver module based on the nRF24L01. It features 6 output channels and is designed for easy integration with your custom code.
🔧 How to Use:
Upload your firmware using an AVR programmer via the ISP port.
Follow the board’s schematic when writing your code.
The RST pin resets the board when connected to GND.
Power the board with 7–25V DC using the VCC (+) and GND (–) pins.
Connect your devices to the 6 output channels.
Insert the nRF24L01 module into its designated socket.
Once powered and programmed, the receiver is ready to use!
🎉 Have fun experimenting and building!
Let me know if you'd like a matching schematic diagram or example code to go with it!
nrf24l01 Universal Receiver
