ZVEX - Fuzz Factory
The Z.Vex Fuzz Factory is a fuzz pedal made by the American inventor and musician Zachary Vex of the Z.Vex Effects company. The Fuzz Factory is based on, yet vastly expands the tonal palette of, classic fuzztone designs from the 1960s. Invented in the mid-1990s, the pedals are mostly handbuilt and painted in Minnesota, United States, with a budget line being manufactured in Taiwan.

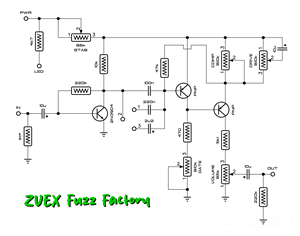

Schematic and Layout
ZVEX_FuzzFactory_schematic.pdf

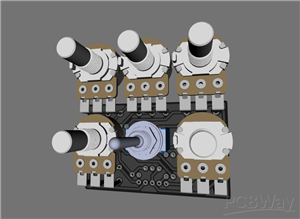

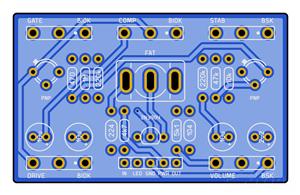

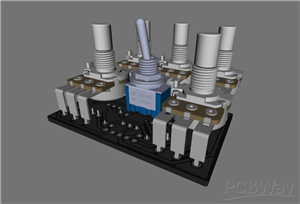

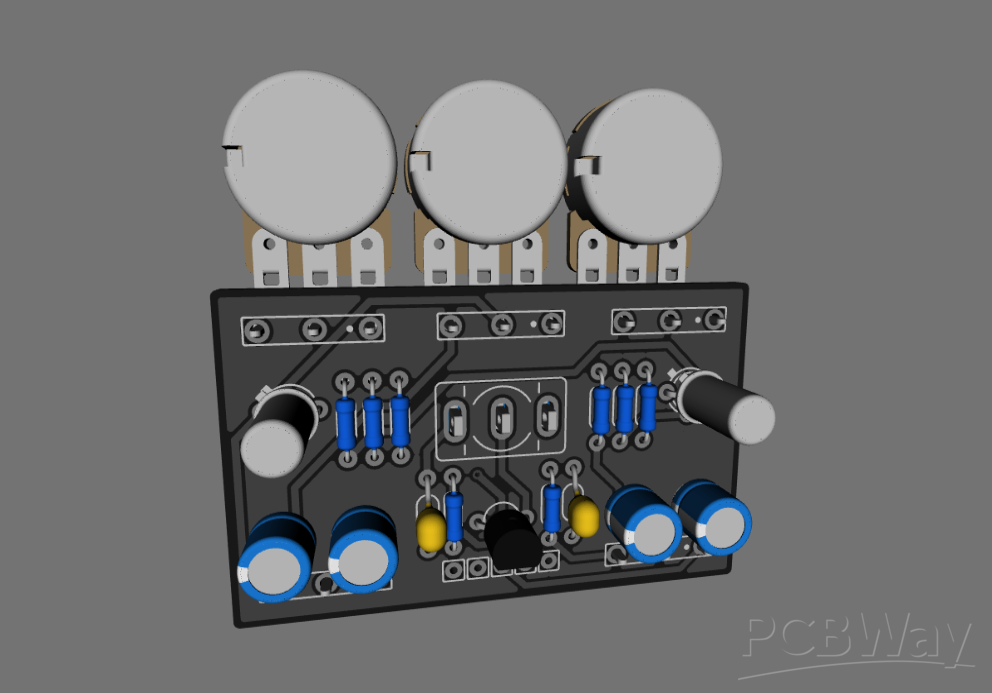

CAD-Custom parts and enclosures
ZVEX_FuzzFactory.dch
ZVEX_FuzzFactory.dip
ZVEX_FuzzFactory.lay6
