Description

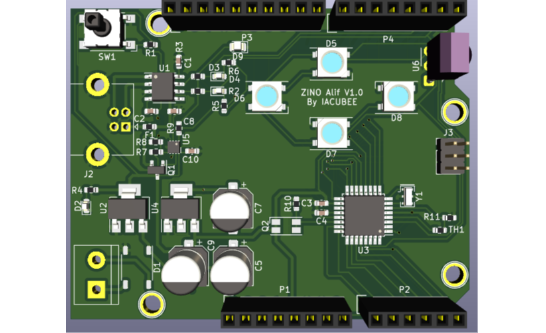

ZINO Alif Arduino UNo Compatible board
The ZINO Alif board is a compatible UNO board, designed to reduce cost, as the new version of this board commands higher prices. Moreover, since the latest versions are not open to the public, ZINO proposes an open version that includes additional features such as IR communication, NeoLEDs, and daylight detection.
Jan 04,2026
50 views
ZINO Alif Arduino UNo Compatible board
In many ARDUINO boards, microcontroller pins are misused. Zino Alif Board, includes all UNO functionalities with additional sens and light.
50
0
0
Published: Jan 04,2026
Standard PCB
Download Gerber file 1
BOM(Bill of materials)
Centroid file
PCBWay Donate 10% cost To Author
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
GNU - GPL
License.
