Roman Kubat
POLAND • + Follow
Components
|
|
Pro Micro ATmega32U4 |
x 1 | |
|
|
Din 6 pin |
x 1 |
Description

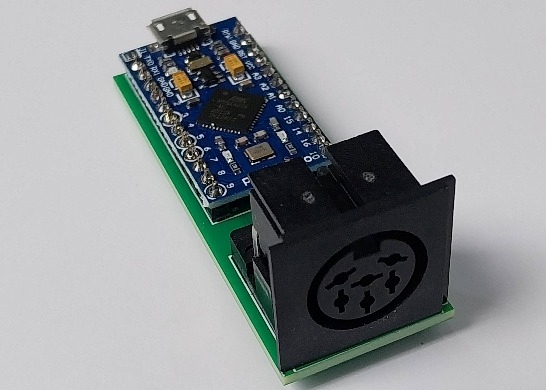

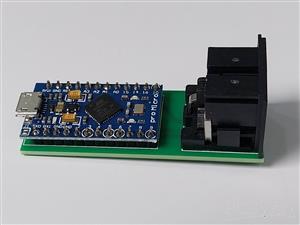

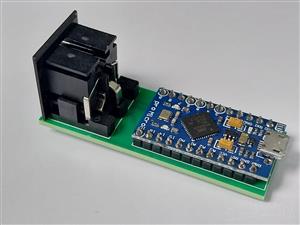

XUM1541 connect your Commodore floppy drive to your PC
XUM1541 allows you to connect a Commodore disk drive to a PC, write and read files, and format a floppy disk.
Arduino Pro Micro should be programmed with the xum1541-PROMICRO-v07.hex file
Micro USB and serial cable required for connection.
Feb 13,2026
15 views
XUM1541 connect your Commodore floppy drive to your PC
2 Layers PCB 21.5 x 58.6 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
15
0
2
Published: Feb 13,2026
Standard PCB
Other files for Assembly
PCBWay Donate 10% cost To Author
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
