Wall Box Mount for Waveshare ESP32-S3-Touch-LCD-4

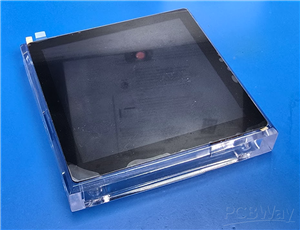

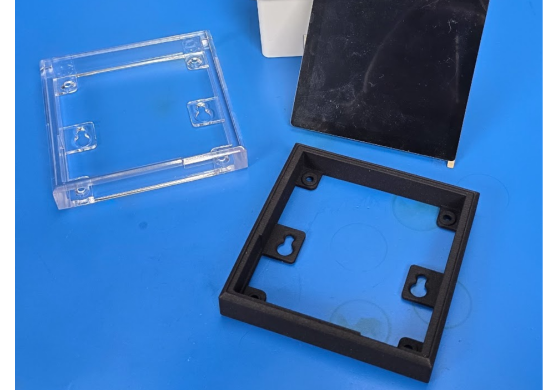

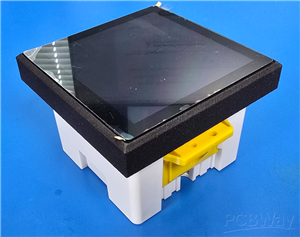

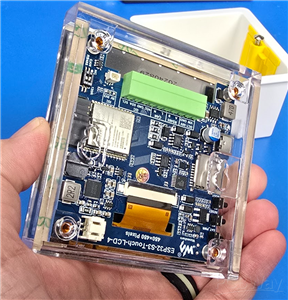

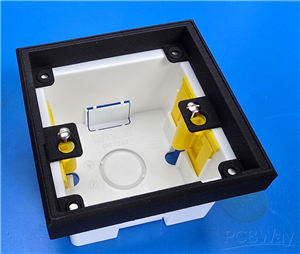

Lets you mount a Waveshare ESP32-S3-Touch-LCD-4 into a standard UK 1 gang wall box or pattress. The LCD screws into the mount using 4x M2.5 screws, and uses the existing M3.5 screws from a standard pattress to fix the display onto the wall. Uses keyhole slots, so the display can be removed by pushing upwards.

CAD-Custom parts and enclosures

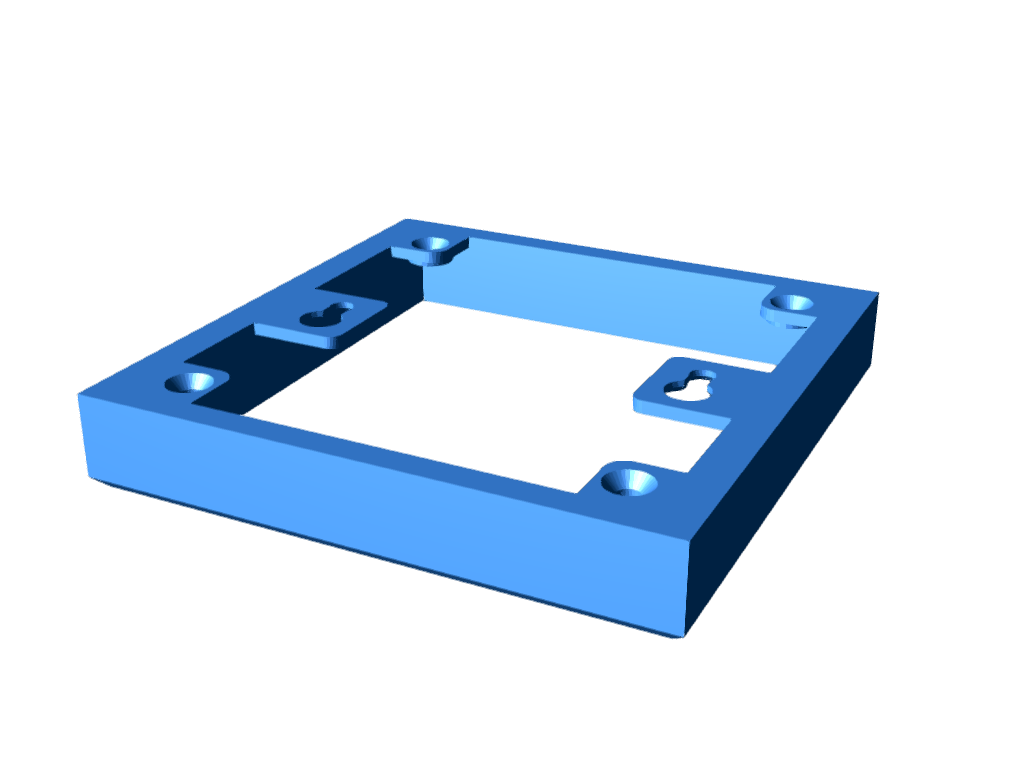

3D CAD - ESP32-S3-Touch-LCD-4 Mount

DMX_TouchDimmerMount.stl

Mar 10,2025

4,070 views

Wall Box Mount for Waveshare ESP32-S3-Touch-LCD-4

Mount your Waveshare ESP32-S3-Touch-LCD-4 to a standard UK wall box/pattress for smart home automation
