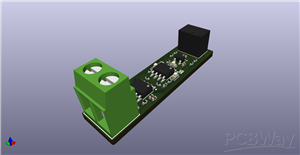

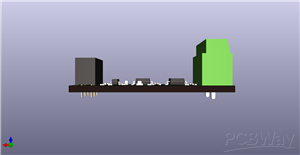

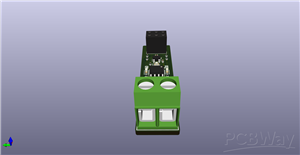

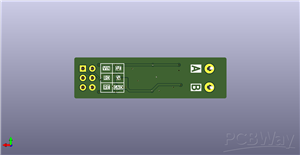

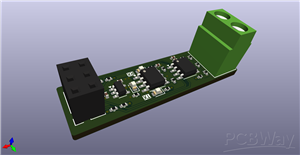

THVD1400D RS485 Transiever Breakout Board
Project Description: High-Speed Transceiver PCB Module
Overview:
The proposed project encompasses the design and implementation of a compact Printed Circuit Board (PCB) module integrating essential components for high-speed data transmission and power management. The core functionalities include a THVD1400D transceiver module for robust data communication at 500 kbps, a TPS7B6933 Low Dropout (LDO) regulator for efficient power supply spanning from 5V to 40V input voltage, and an Operational Amplifier (OP AMP) module for real-time visualization of outgoing and ongoing data via RX,TX LEDs.
Key Components:
- THVD1400D Transceiver Module:
The THVD1400D is a high-speed transceiver designed for reliable data communication in industrial environments. Features include high immunity to electromagnetic interference (EMI) and transient voltage events, making it ideal for harsh operating conditions. Capable of achieving data rates up to 500 kbps.
- TPS7B6933 LDO Regulator:
The TPS7B6933 LDO regulator with a wide input voltage range of 5V to 40V. Incorporates protection features such as overvoltage and overcurrent protection.
- TX & RX LEDs:
LM358 Operational Amplifier module is integrated to facilitate the visualization of outgoing and ongoing data. Utilizes LEDs for clear and intuitive indication of data transmission status.
PCB Specifications:
- Layer Configuration: 2-layer PCB design.
- Thickness: 1.6mm
- Dimensions: 11.01 x 40.89mm
THVD1400D RS485 Transiever Breakout Board
