Description
Raspberry Pi Micro SD Express Adapter
microSD-express Pi Adapter

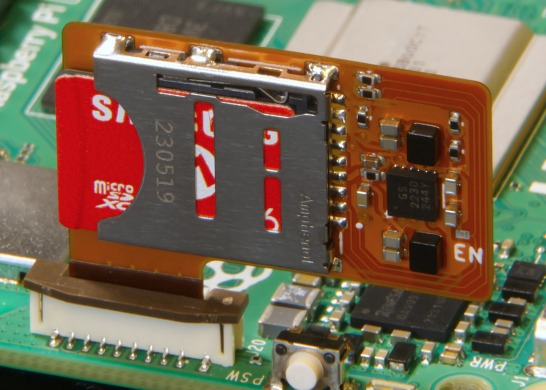

This adapter allows you to connect a MicroSD Express card directly to the PCIe connector on a Raspberry Pi 5
Very fast speeds (800MB/s sequential read) can be achieved this way
NOTE: controlled impedance is critical for good PCIe performance. The files are designed for 50μm PI dielectric and 0.5oz copper.
original project by: https://github.com/vapetrov/microSD_express_Pi?tab=readme-ov-file#microsd-express-pi-adapter
Schematic and Layout
Git Project
https://github.com/vapetrov/microSD_express_Pi?tab=readme-ov-file#microsd-express-pi-adapter
schematic.pdf
Aug 05,2025
624 views
Raspberry Pi Micro SD Express Adapter
2 Layers PCB 101 x 250 mm Polyimide Flex, 0.1 mm, 0.5, Immersion gold (ENIG), Black Solder Mask, White silkscreen
Micro SD Express with up to 800MB/s performance. Boot from PCIe interface.
624
3
0
10.00 (1)
Published: Aug 05,2025
Flexible PCB
Download Gerber file 4
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
File Last Updated: 2025/08/20 (GMT+8)
