Description

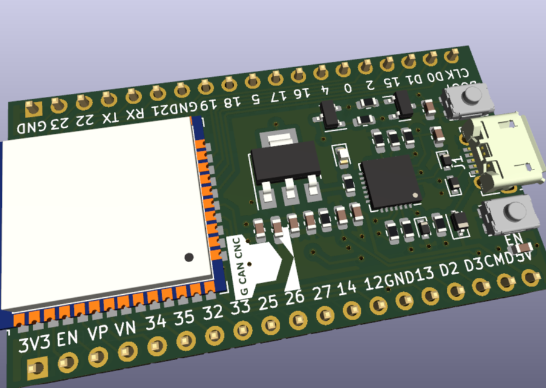

esp32_devkitc_v4

This was a nice proyect, back in 2022 the price of the chips where skyrocketing, so i made this to the get the costs lower. Now in 2026 you can get a ESP32 wroom module for 3-4$, even a ESP32S3 with USB C connector. This is the last update i will do, as this proyect is getting obsolete. I´m now working on a ESP32 and ESP32S3 shields for bought dev modules, wich i will soon publish.

Proyect started as we need some Devkits for a cnc machine to run FluidNC. As there are so many options and variants of devkits i decided to make one that was compliant with it, so you can source it yourself. I used the esp32 wroom 32e module, but also the "32d" would go fine.

Take note of the Micro B usb feamale connector, there are lots of different footprints so changing it might not be compliant with the board.

Schematic and Layout

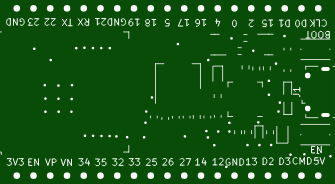

Top side


Back side


Schematics

esp32_devkitc_v4-sch.pdf

Download Gerbers Download BOM(Bill of materials)

Jun 22,2022

2,093 views

esp32_devkitc_v4

2 Layers PCB 27.9 x 50.8 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen

Source your own DIY_esp32_devkitc_v4
