Zen Tech Service is developing a ceiling-mounted hotel privacy protection device designed to detect unauthorized hidden wireless cameras.

The device uses an ESP32-based electronic system and an RF detector to monitor radio-frequency activity when a hotel room is vacant. When a guest enters the room, the hotel card-holder contact activates Privacy Mode and scanning pauses. After the guest leaves, scanning resumes automatically.

When suspicious RF activity is detected, the system is designed to send an alert to hotel security through a Wi-Fi-connected dashboard.

This project is a prototype intended for hardware validation, PCB assembly, testing, and further development.

The uploaded Gerber, BOM, Pick-and-Place, and schematic files relate to the electronic board design.

Project owner: Zen Tech Service.

Download Gerbers Download BOM(Bill of materials)

Oct 09,2026

33 views

Gerber_Camera-detector-AF1_PCBWAY_READY

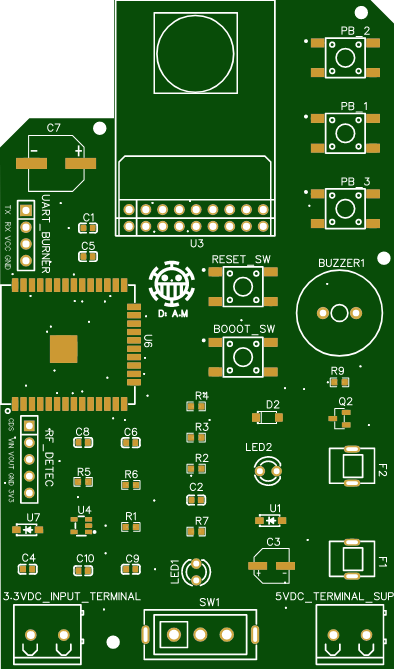

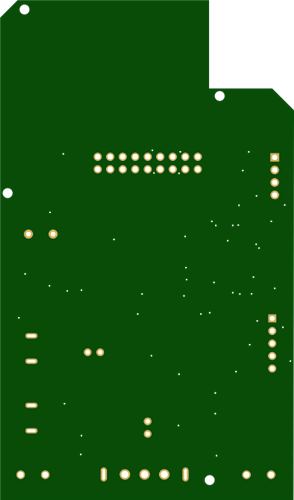

2 Layers PCB 59.69 x 101.35 mm FR-4, 1.6 mm, 1, HASL lead free, Green Solder Mask, White silkscreen
