Description

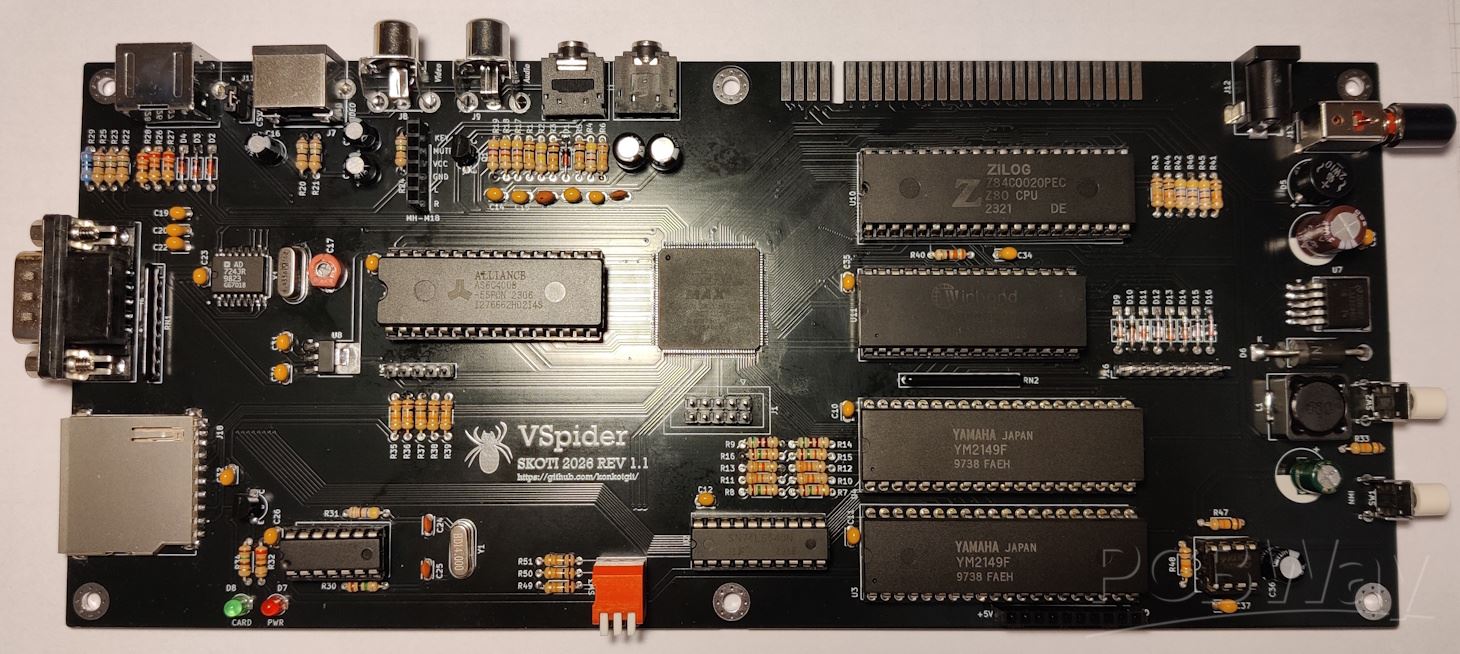

VSpider - ZX Spectrum Pentagon Clone
Hardware Features
ULA implemented using Altera CPLD (EPM3256)
512 KB RAM
128 KB ROM
Built-in DivMMC
Z-Controller support
YM2149F TurboSound (true stereo output)
Kempston-compatible joystick interface
Bluetooth audio module for game loading
WiFi Ready
🎥 Video Outputs
RGB (Mini-DIN/9, Sega-style)
Composite
S-Video
🔊 Audio & I/O
EAR / MIC (tape interface)
Line audio output
🔌 Power
Input supports either polarity (protected)
🛠️ Build
Fully optimized for through-hole assembly
Ideal for DIY and retro enthusiasts
Code
VSpider Project Page
https://github.com/konkotgit/VSpider
Schematic and Layout
Schematic and Layout
https://github.com/konkotgit/VSpider
Jun 21,2026
20 views
VSpider - ZX Spectrum Pentagon Clone
A modern reimplementation of the classic Pentagon architecture.
20
0
1
Published: Jun 21,2026
Standard PCB
PCBWay Donate 10% cost To Author
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-NonCommercial (CC BY-NC)
License.
