Updated HackberryPi CM5 Shell Options
Modified the original shell files from the creator of the HackberryPi CM5 (Zitao) and fixed some issues with the edges. Also created two new back plates that don't have the mag-safe cut-out and feature a vent for the SSD.
- If you want yours to look like mine, Use SLA 3D printing, then for material use UTR-8100 (transparent).
- For the screws your going to want to use M2x12mm screws. (Let PCBWay know to tap the front case for M2!)
CAD-Custom parts and enclosures
Front 9900

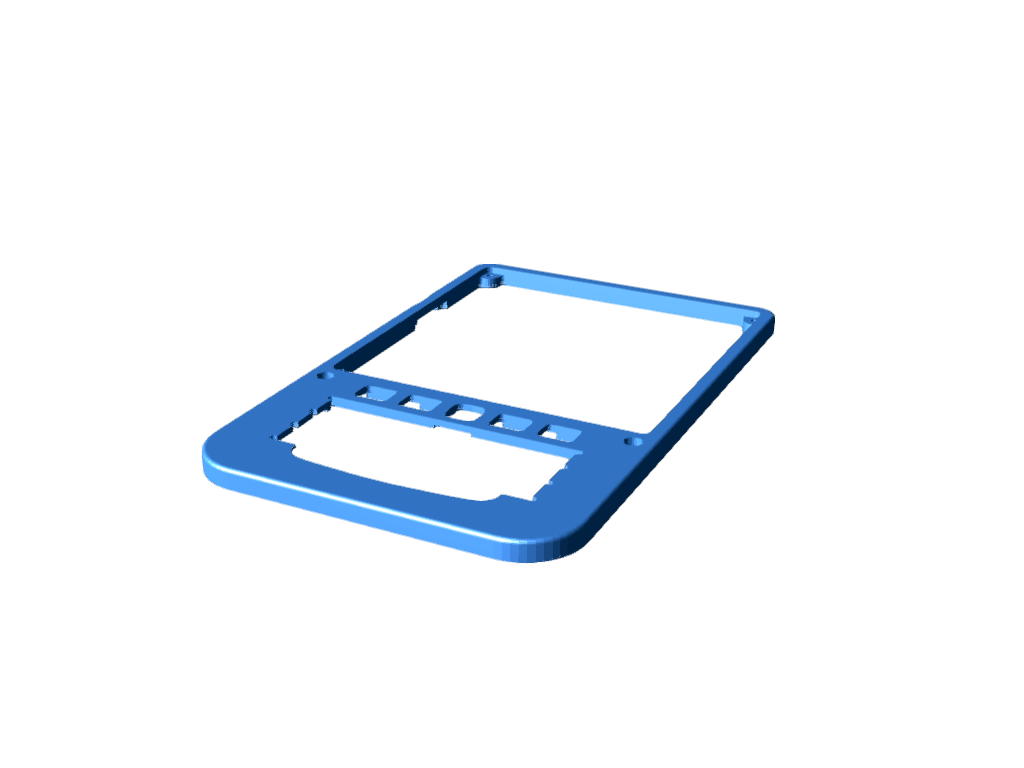

front_cover_9900.stl
Front Q20
front_cover_q20.stl
Front Q10
front_case_q10.stl
Middle Shell

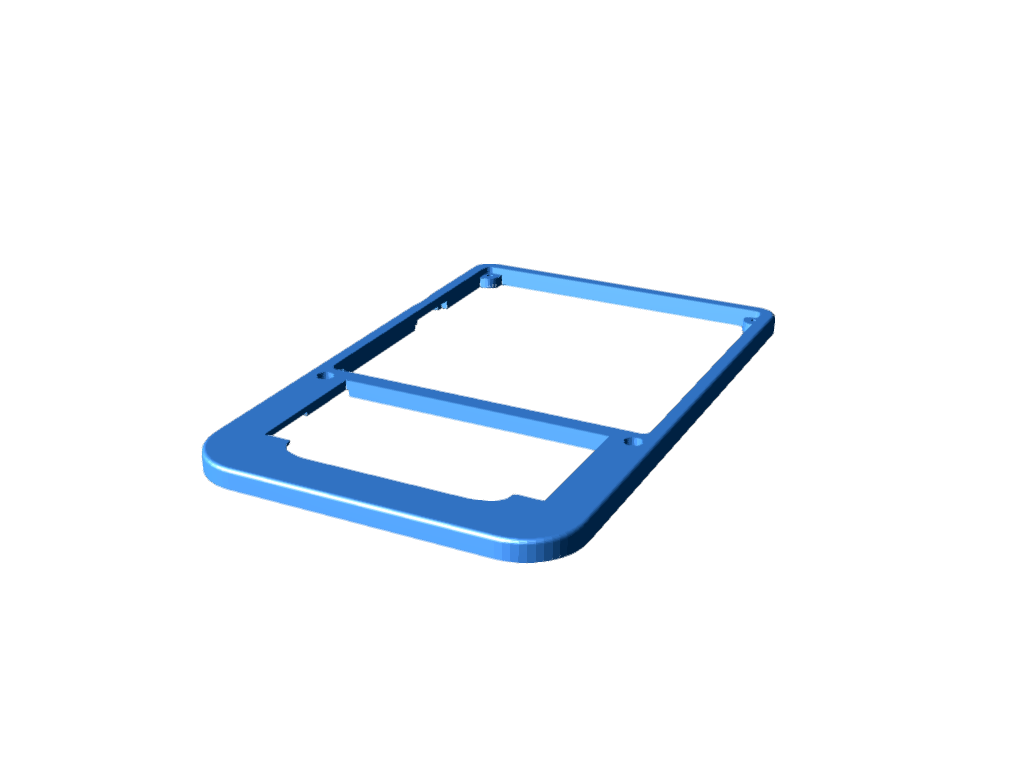

middle_case.stl
Back Coer with Magsafe
back_cover_magsafe.stl
Back Cover SSD Vent

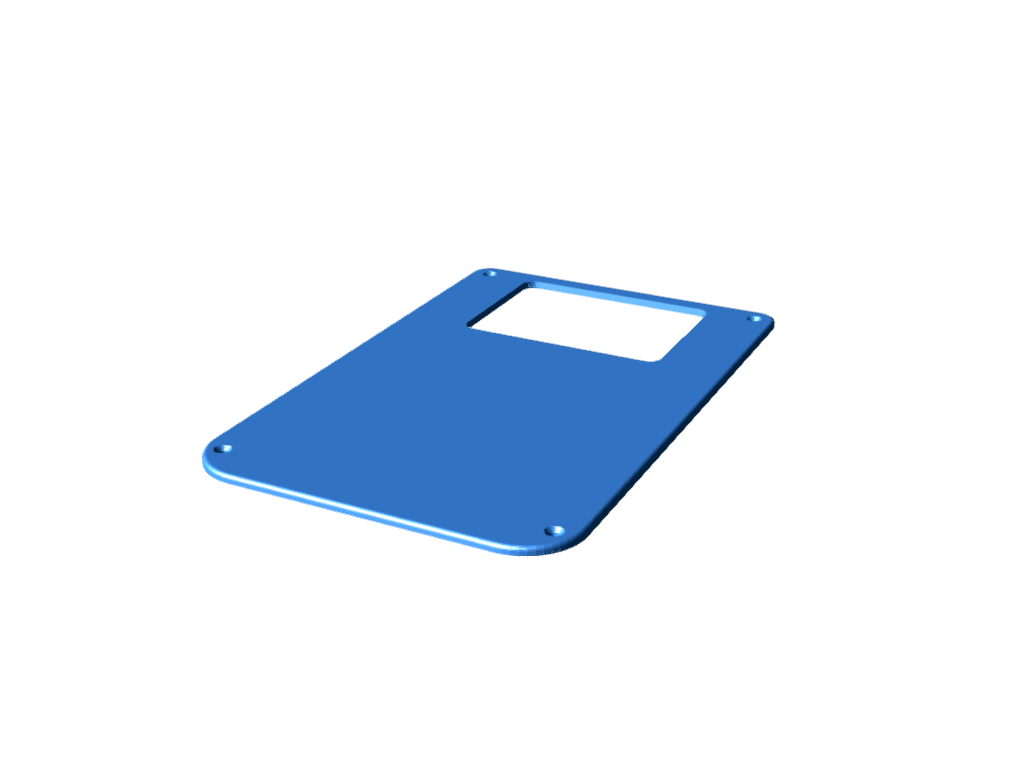

back_cover_ssd_vent.stl
Blank Back Cover
back_cover.stl
