Description
Unknown Sensor 5VDC+ v2.0
A DIY project using Fritzing and Google Gemini for the design progression. 5 Volts DC + PWR supply, for testing any passive electronic sensor. Designed to be very affordable and doesn't need a Micro-Controller board for use. I mean it to be a DIY project for DIY Electronics Enthusiasts to be able to make and interesting to use.
Schematic and Layout

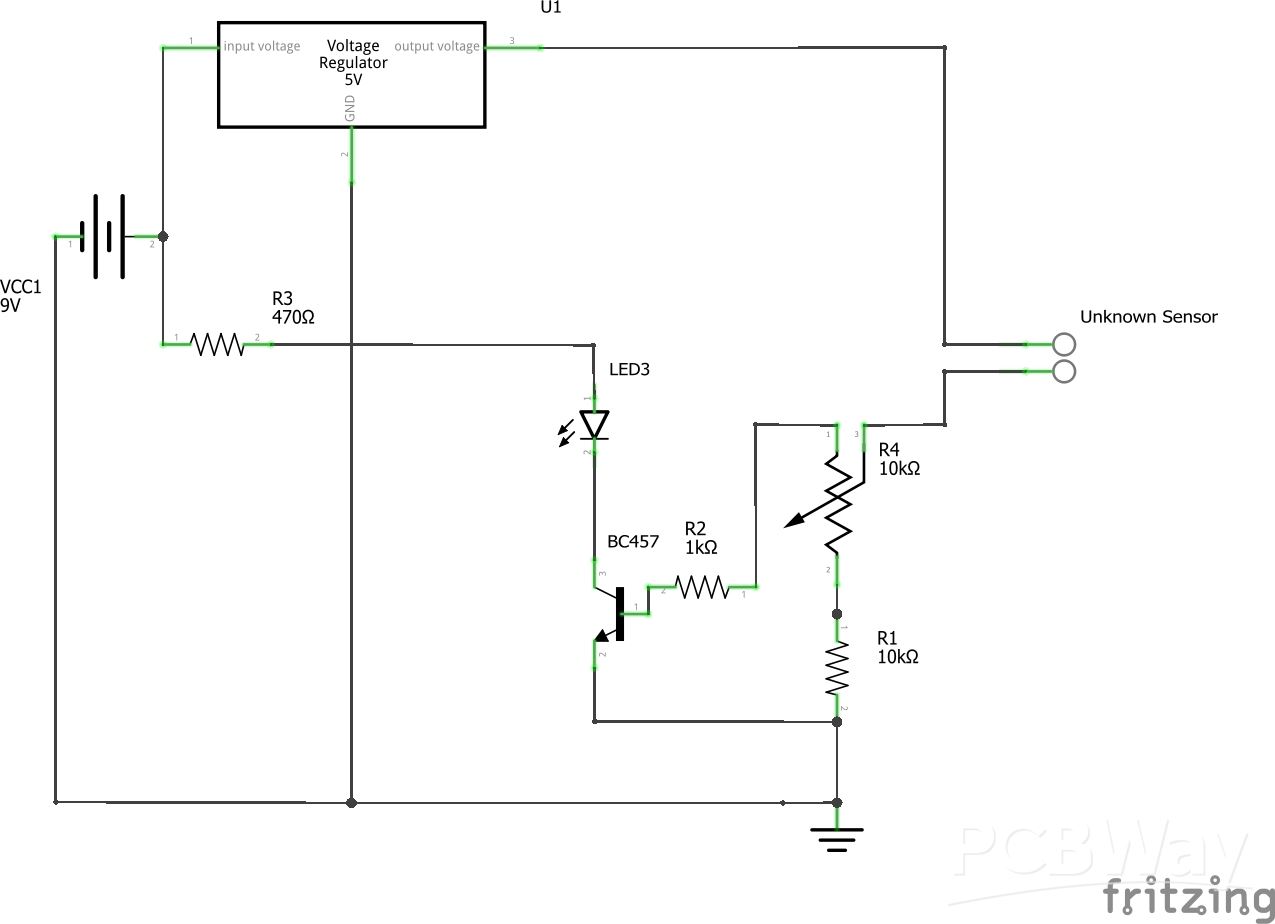

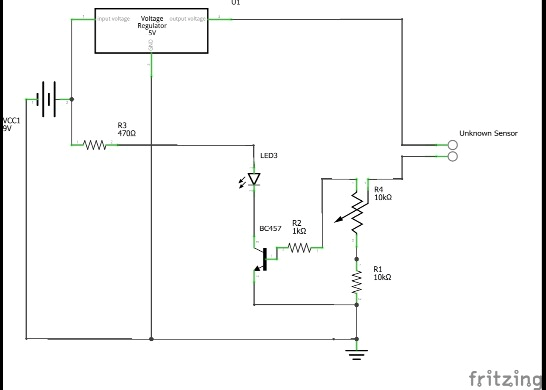

Schematic Diagram
unknown sensor5v v2.0Sketch_schem.jpg
Jun 20,2026
45 views
Unknown Sensor 5VDC+ v2.0
2 Layers PCB 100 x 100 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
A DIY project using Fritzing and Google Gemini for the design progression. 5VDC+PWR supply, for testing any passive electronic sensor.
45
1
0
Published: Jun 20,2026
Standard PCB
Download Gerber file 1
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
