UniPass USB

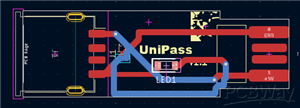

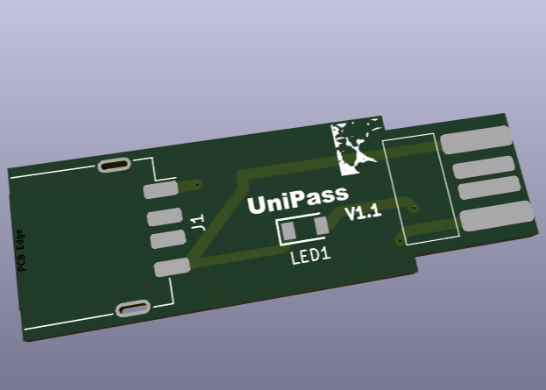

A simple PCB, If you are in the airport or somwhere and you want to charge your device there you can risk that your info gets stolen.

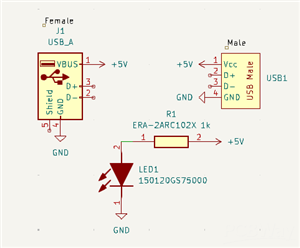

This device allows only power to get to the phone.
Channel log:
v1.1
- Led Added
- Bigger Traces
- Bigger Via's
Jan 23,2025
354 views
UniPass USB
Simple PCB that will let only power pass for all devices
354
2
2
Published: Jan 23,2025
Standard PCB
Download Gerber file 5
BOM(Bill of materials)
