Cameron Emmert
UNITED STATES OF AMERICA • + Follow
Components
|
|
PJRC Teensy 4.1 |
x 1 | |
|
|
MPU-6050 |
x 1 | |
|
XLM2MR01DSunLED
|
x 3 | |
|
RC1206FR-1310K7LYAGEO
|
x 2 | |
|
|
330 Ohm resistor |
x 3 | |
|
|
470uF 35V |
x 1 | |
|
|
KMR223G LFG |
x 1 | |
|
|
BMP280 |
x 1 | |
|
|
SW_SPDT |
x 1 |
Tools, APP Software Used etc.
|
KiCad 9.0 |
Description
Tortuga: A TVC Avionics Board
Hi! I’m Cameron, a 7th‑grader building a Thrust‑Vector‑Controlled (TVC) model rocket from the ground up with a friend. Instead of relying on someone else’s design, I decided to learn PCB design so I could create a custom avionics system tailored to our rocket.
Project Tortuga is a 45 x 95 mm‑wide flight computer featuring:
- Three servo ports for TVC actuation and parachute deployment
- SD card logging
- Orientation and altitude tracking
- LED status indicators
More photos and files will be added in the future. Thanks for checking out my project!
For questions, feel free to email me at camemmert@gmail.com.

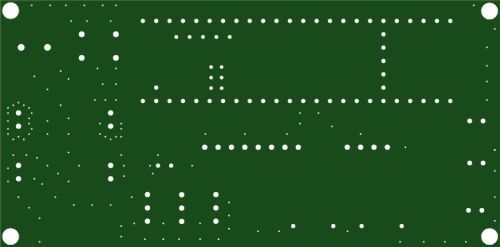

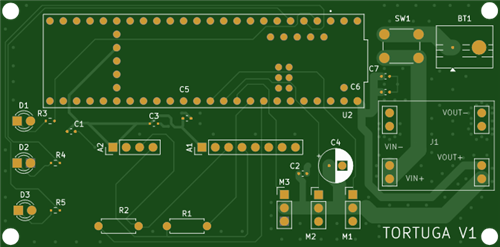

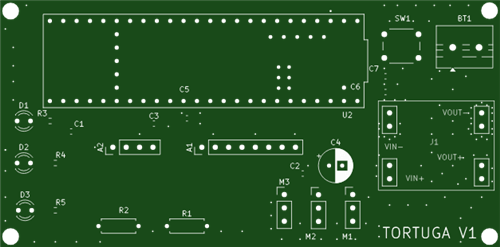

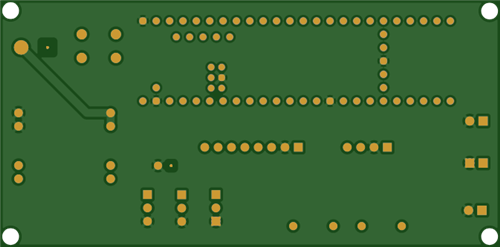

Schematic and Layout
tortugaschematic.pdf
