TinyStream screen

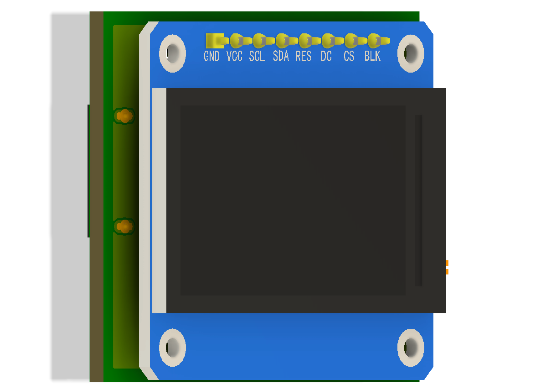

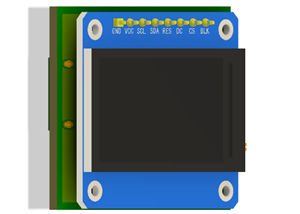

Over summer I worked on code to control a tiny screen and decided I wanted to make it a full project. I decided to design my own RP2040 development board from scratch rather than using a Raspberry Pi Pico, with the aim of learning how the complete circuit works while keeping it simple and affordable to manufacture. The board uses a bare RP2040 with external QSPI flash, USB-C, onboard 3.3 V regulation, a 12 MHz crystal, RESET and BOOTSEL buttons, and SWD programming, creating a compact general-purpose microcontroller board that can be used for future projects.
