Description

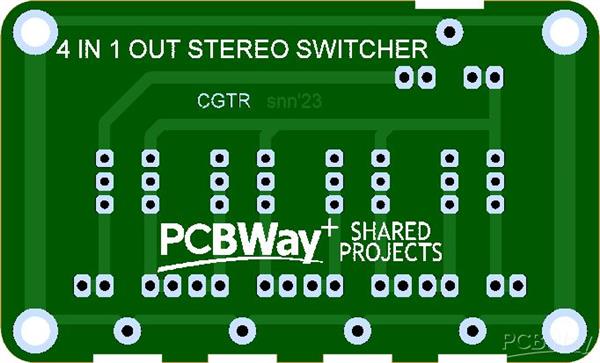

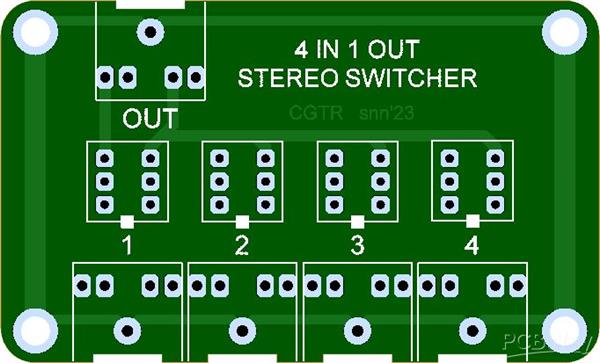

Stereo Audio Switcher 4-In 1-Out

Hello,

This project is Not tested yet.

COMPONENTS:

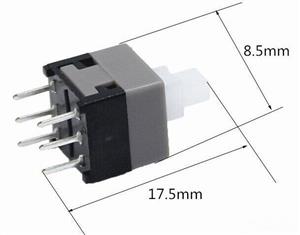

4 pcs. 8.5mm x 8.5mm 6pin push button On-Off Locking Switch

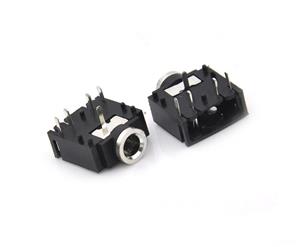

5 pcs. 3.5mm-Female-Stereo-Audio-Socket-Headphone-Jack-Connector-5-Pin-PCB-Mount

Gerber files and component list are subject to change without notice. Before paying for the PCBs, be sure to update your orders!

As you can see I have uploaded many projects and I am still working on new projects. If you have any questions, please look for answers online. Unless I specify explicitly, all my projects are tested and confirmed to work under normal circumstances before being shared. I'm sorry I didn't have enough time to answer all the questions.

Use this PCB at your own risk !

Have fun

Thank you.

C64iSTANBUL

Mar 03,2023
