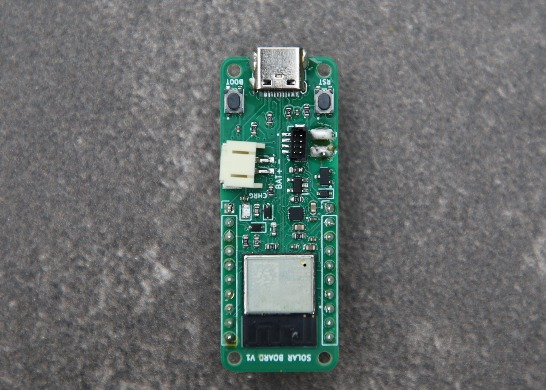

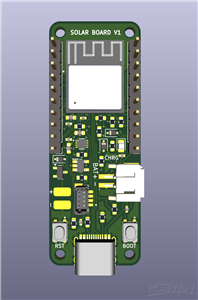

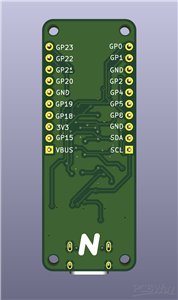

Solar Devboard V1.5
If you want to build a solar powered project, you likely need to use external charging modules, ugly wiring to connect them, and therefore a larger enclosure. So instead, I built this devboard. It closely resembles the raspberry pi pico form factor and includes all the necessary features you need for your IOT project in a compact form factor.

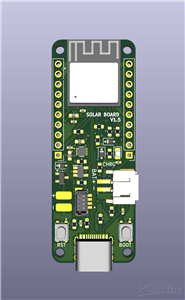

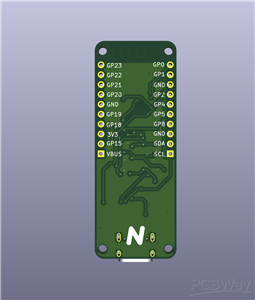

[UPDATE V1.5]
- Fixed ground plane error that decrease wifi range
- Board dimensions were kept exactly the same
Features
- ESP32 C6 with WiFi, Thread, Matter support
- 1x QWIIC i2c connector
- Reverse polarity protection on the solar panel input
- 10x IO pins
Dimensions: 21x56mm
Checkout the full video:
Solar Devboard V1.5
