İsmail Eren Akkuş
TURKEY • + Follow
Edit Project
Components
|
XR2206 |
x 1 | |
|
16pin DIP Soket |
x 1 | |
|
DC Jack |
x 1 | |
|
2x2 erkek pin |
x 1 | |
|
5x2 erkek pin |
x 1 | |
|
Pin başlığı |
x 2 | |
|
3 pinli KF301 Soket |
x 1 | |
|
330 Direnç |
x 1 | |
|
1k Direnç |
x 1 | |
|
5.1k Direnç |
x 3 | |
|
B503 50k Ayarlı Direnç |
x 2 | |
|
B104 100k Ayarlı Direnç |
x 1 | |
|
100uF 20V Kapasitör |
x 1 | |
|
10uF 20V Kapasitör |
x 2 | |
|
0.1uF Kapasitör |
x 1 | |
|
1uF Kapasitör |
x 1 | |
|
47nF Kapasitör |
x 1 | |
|
2.2nF Kapasitör |
x 1 | |
|
0.1nFF Kapasitör |
x 1 |
Description

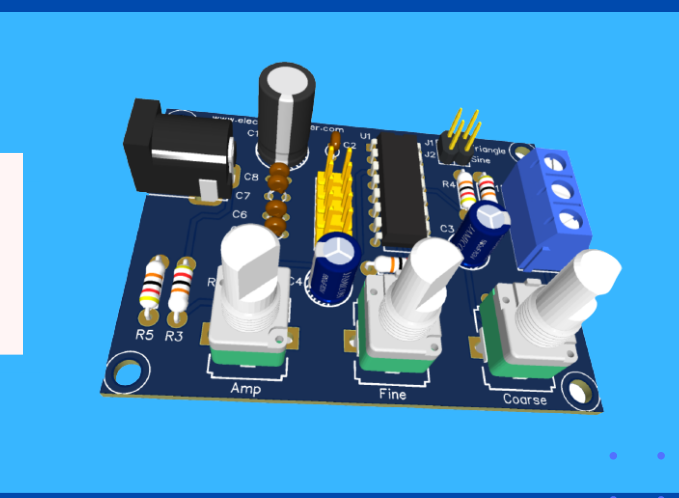

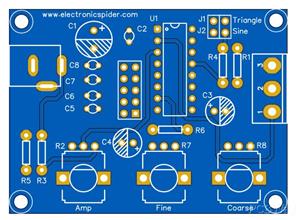

Signal Generator
A signal generator is one of a class of electronic devices that generates electronic signals with set properties of amplitude, frequency, and wave shape. These generated signals are used as a stimulus for electronic measurements, typically used in designing, testing, troubleshooting, and repairing electronic or electroacoustic devices, though it often has artistic uses as well.
For details: http://www.electronicspider.com/
Dec 20,2020
1,492 views
Signal Generator
For details: http://www.electronicspider.com/
1492
2
0
Published: Dec 20,2020
Download Gerber file 35
Purchase
Donation Received ($)
PCBWay Donate 10% cost To Author
