Description
Simple USB-C Breadboard Power Supply

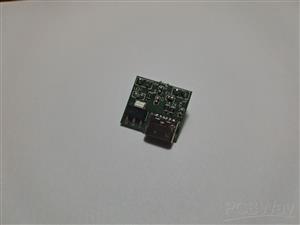

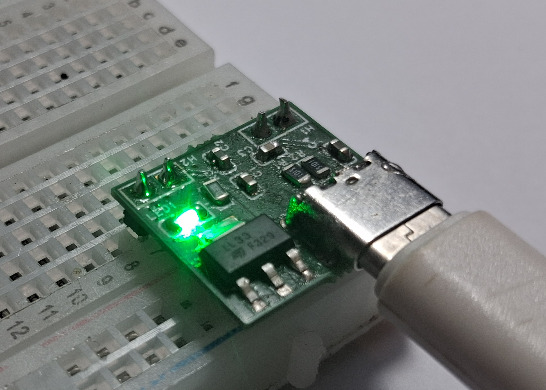

A simple "power supply" compatible with breadboards that should be able to output 3.3v@1A aswell as 5 volts. It is a really simple design consisting of very few components, mainly a voltage regulator and a couple of capacitors. On the PCB, there is a LED that indicates the device is recieving power. It is compatible with USB-C to USB-C chargers thorugh the use of CC pins on the board. This is one of my first projects that actually work :D
Schematic and Layout
Schematic.pdf
May 25,2025
334 views
Simple USB-C Breadboard Power Supply
A USB-C power supply that can output both 3.3 volts and 5 volts. Really simple schematic (1 regulator, 3 resistors, 1 led, 4 capacitors)
