Description
Simple LPTsnd – Covox Speech Thing for PC LPT

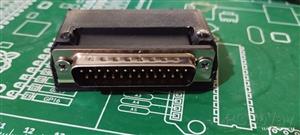

Case for Simple LPTsnd – Covox Speech Thing for PC LPT
4 bolts are required for assembly.
2* m3x15
2*m3x6
db25 connector pcb fixing legs will be cut. m3x15 bolts will pass through those holes.
db25 metal shield will be fixed with m3x6 bolts.
CAD-Custom parts and enclosures
TOP.stl
BOTTOM.stl
