Tools, APP Software Used etc.

KiCad 8.0

Description

SOIC DIP adapter for 14-pin ATtiny microcontrollers

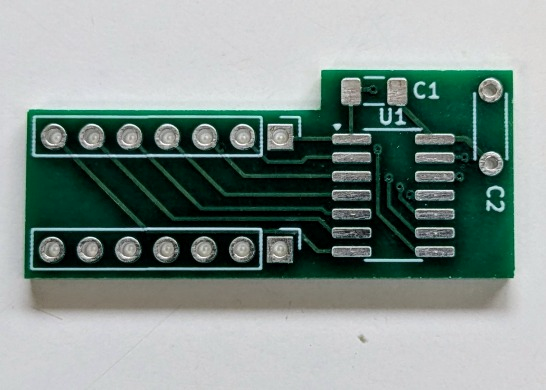

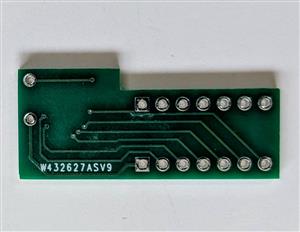

This is a SOIC to DIP adapter board that is specialized for 14-pin ATtiny microcontrollers such as the 3224 and 1624. It includes a surface mount primary decoupling capacitor (100 nF, size 1206) and a secondary decoupling capacitor (through hole, 1 - 10 nF). It uses oversized pads for the SOIC to make it easier to hand solder.

Download Gerbers

Apr 18,2025

768 views

SOIC DIP adapter for 14-pin ATtiny microcontrollers

2 Layers PCB 32.9 x 14.2 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen

Easy to solder DIP adapter that allows 14-pin SOIC ATtiny microcontrollers to be used on a standard breadboard.

768

Published: Apr 18,2025
