Rc bait boat for carp fishing - transmitter
hi guys
This written the same of https://www.pcbway.com/project/shareproject/Rc_bait_boat_for_carp_fishing.html
But this units has transmitter unit information link.

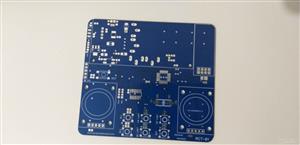

Making rc boat for carp fishing now. Usually i like fishing :) So decided bait boat. I benefited youtube a lot of videos. System has two categories. receiver and transmitter units. Transmitter using very easy and only two 9v batteries make on or available usb. Datas viewing on 2x16 lcd. Also two joysticks,six buttons. Let's see receiver :)
Receiver unit has two high current (10A) h bridge , four low current outputs, two temperature sensors input and buzzer.
Two units has power indicator leds and status leds. I don't finish software yet. when ? finish software, will upload folder again
Thank you pcbway, thank you for your interest
