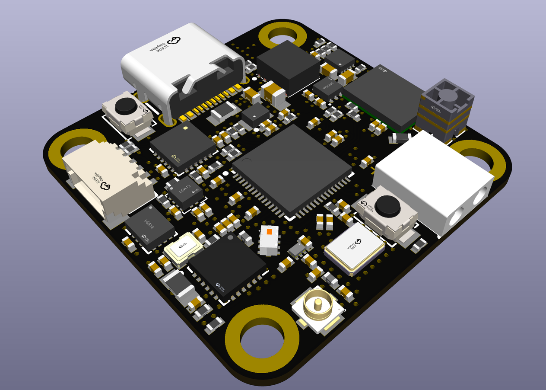

Picogon: a feature rich RP2354A development board.

Picogon is an open source RP2354A based control board that combines a large number of features in a tiny 30mm x 30mm footprint. Integrating USB-PD w/PPS, WiFi/BLE and also LoRa using an SX1262, it’s the ultimate compact power house for all your project needs. It also features built in battery management for running on 3.7V LiPos and exposes almost all usable interfaces via solder able pads on the bottom. Additionally, it features a 6 DoF IMU and a magnetometer for absolute positioning with additional sensors easy to add via a stemma I2C port.

Schematic and Layout

https://github.com/azlan-works/Picogon

Download BOM(Bill of materials)
