Pico W Controller

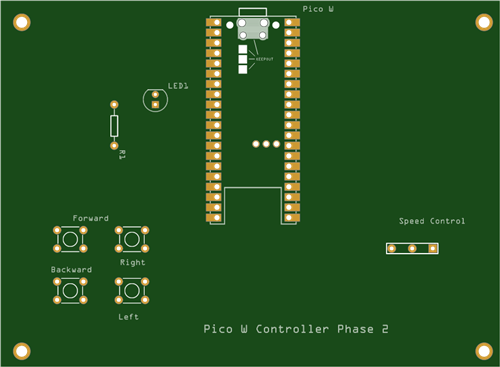

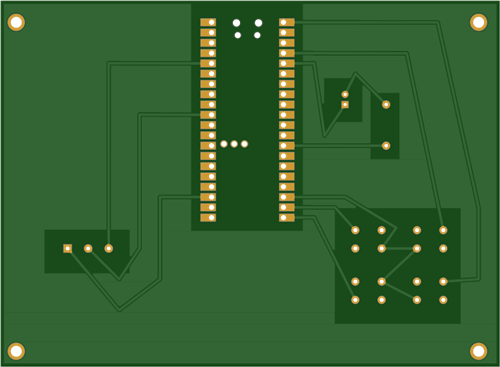

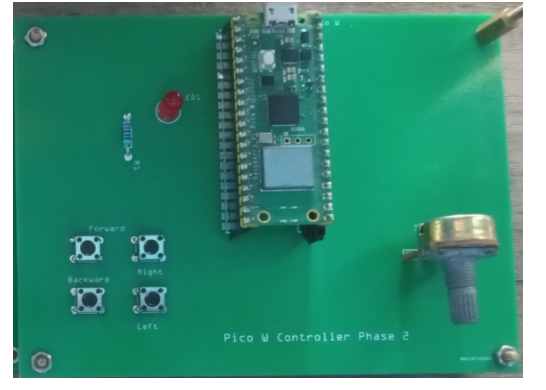

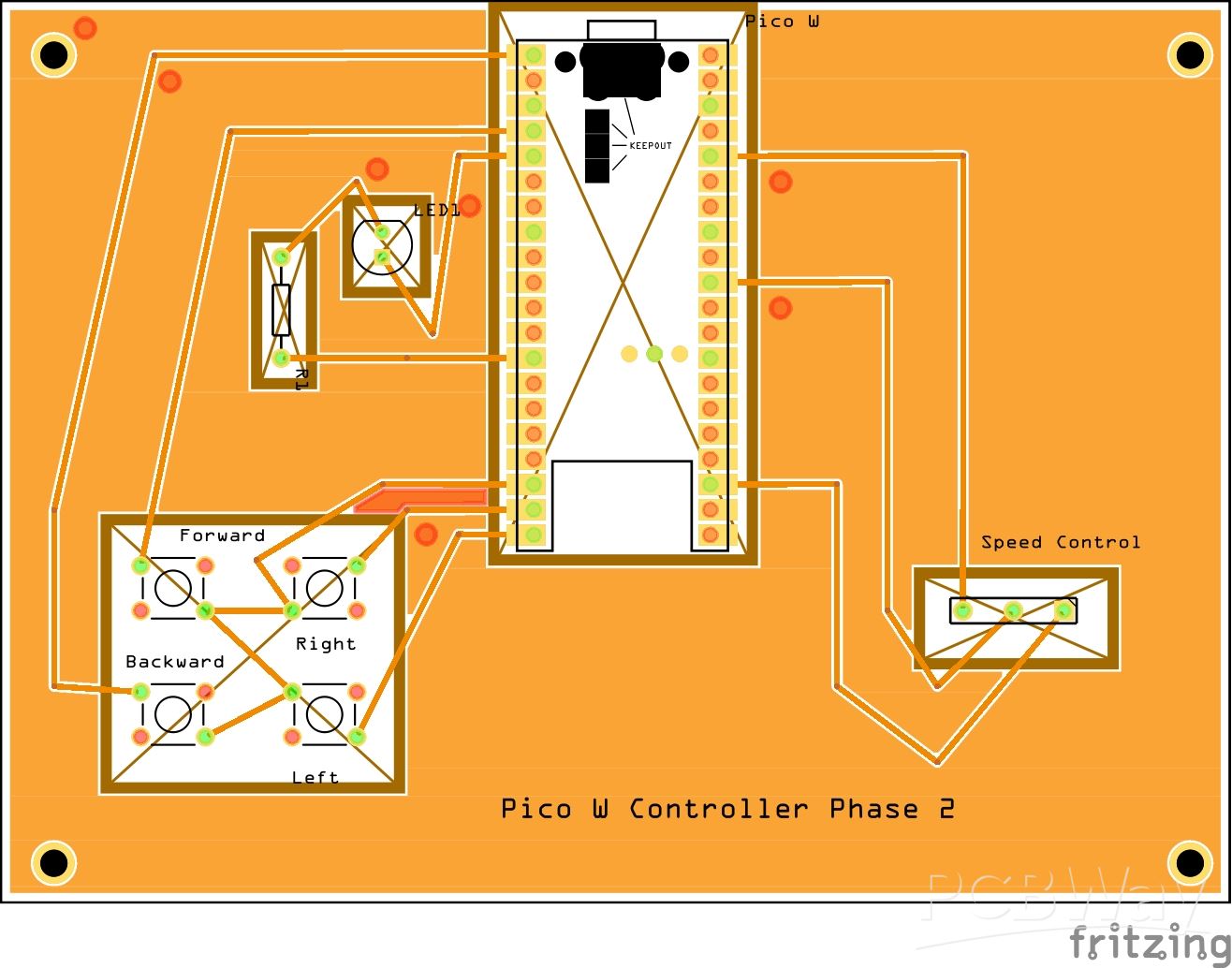

This board is used for Robotics and for general hobbyist projects. The board uses four buttons for movement and a potentiometer for Speed Control. It also includes an LED to test the functionality of the board. This board is compatible with the Pico W, Pico, Pico 2 and Pico 2W. Board is an improvement of the original Pico W PCB controller that had issues including misplaced ground traces and bad soldering.
Playlist for PCB Tests: Here
Playlist for Pico W/ESP32 BLE Communication Tutorials that use this board: Here
Playlist for ESP32/Pico W BLE Communication Tutorials that use this board: Here
The Video Below shows the controller running an ESP32 Robot.
Medium Article Library for ESP32/Pico W BLE Communication Tutorials: Here
Medium Article Library for Pico W/ESP32 BLE Communication Tutorials: Here
Pico W Controller
