PCBWay 11th Badge Design Contest Nasib Fahim

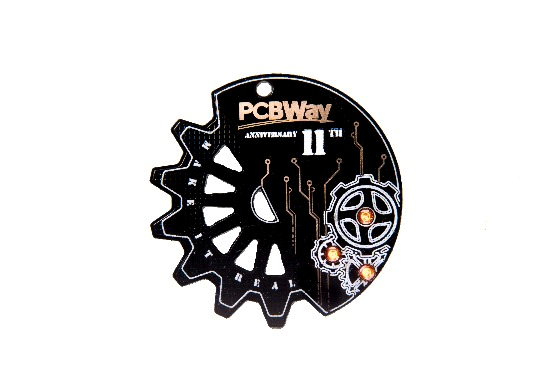

This badge aims to represent PCBWay’s ability to bring inventors’ ideas to life from all around the world—covering both the electrical aspect (represented by the golden lines reminiscent of PCB traces) and the mechanical aspect (represented by the gears shown on the badge).

Additionally, the badge includes discrete electronics that allow a soft breathing effect of LEDs placed on the axes of the gears featured on the top layer. This breathing light represents how a product can come to life after once being just a simple idea.

https://github.com/NasCraftsman/PCBWay-11th-Badge

Code

GitHub Repository

https://github.com/NasCraftsman/PCBWay-11th-Badge

Download Gerbers Download BOM(Bill of materials)

Apr 30,2025

1,063 views

PCBWay 11th Badge Design Contest Nasib Fahim
