PCBWay 11th Anniversary Badge

PCBWay 11th Anniversary Badge 04 Designed by Nick Electronics

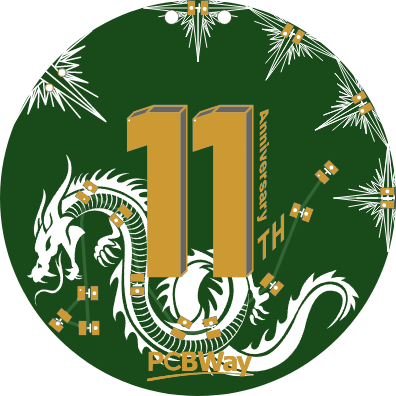

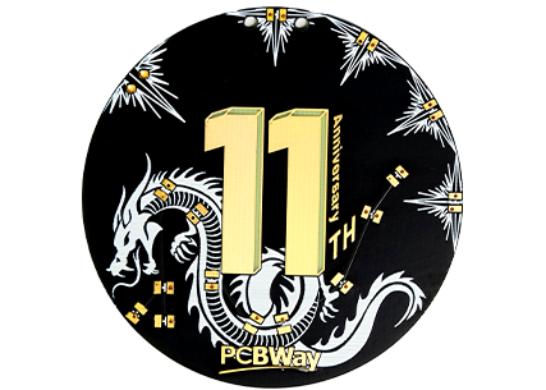

The design of this badge is not only beautiful, but functional. There is a dragon constellation on it, formed by 11 flashing LEDs, representing stars in the night sky, with a white dragon behind.

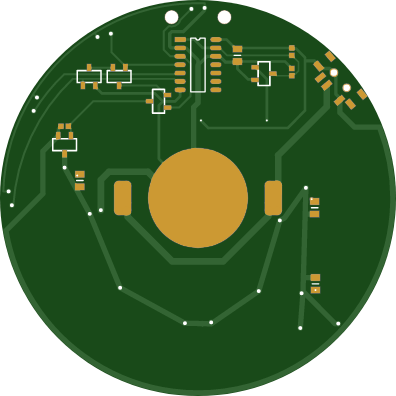

Functionality: Number 11 is not just a number. In reality it's a touch sensor. When 11 in the middle is touched, the counter IC counts touches and lights up edge LEDs (4 of them at the very edge of the board). Those LEDs represent a binary code - 0b0000. When the number of touches reaches 11, the middle 11 LEDs (Dragon Constellation) start blinking dazzlingly in favour of PCBWays 11th anniversary :)

Download Gerbers Download BOM(Bill of materials)
