NanoLeaf alpha
My project is to develop a modular and intelligent lighting system, inspired by the famous Nanoleafs. However, with reduced cost, using easy-to-find components, 3D printing, and an Open Source platform that allows the whole community to contribute and create new integrations.

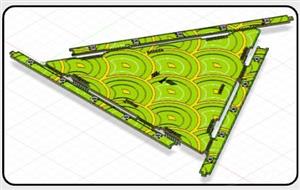

- The board was designed as a single piece to make component soldering easier.
- For assembly, the LED bars must be detached, and they have a crease for this purpose.

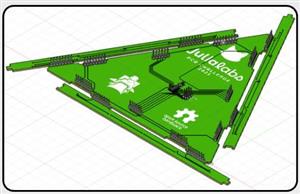

- Although the previous image shows pin headers on all connections, the idea is to use solder to attach the pieces, so pins are not necessary. On all joints, it is possible to solder one piece to another.

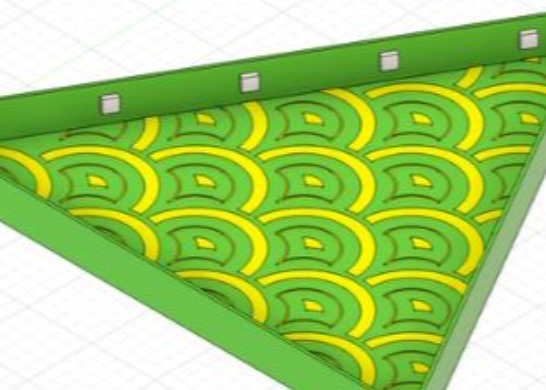

- Where you see yellow, there will be a tinned finish to improve light reflection.
