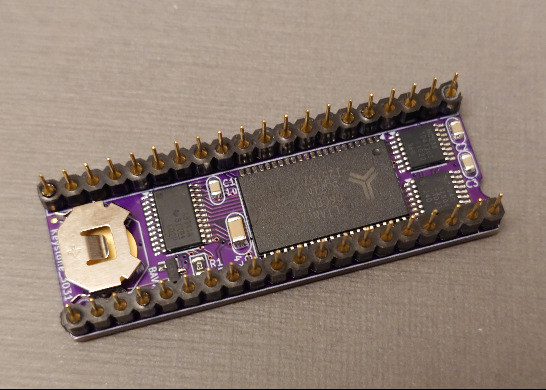

MiniNDP u1M - 1M RAMdisk for TRS-80 Model 100 & Kyotronic KC-85

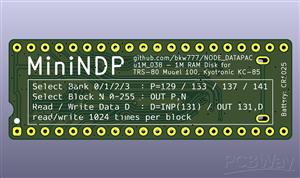

1 Megabyte ram disk for TRS-80 Model 100 and Kyotronic KC-85
Re-implementation of Node Systems DATAPAC / RAMPAC in a DIP-40 form factor.
https://github.com/bkw777/NODE_DATAPAC/
Drver software
https://github.com/bkw777/NODE_DATAPAC/tree/main/software/RAMDSK

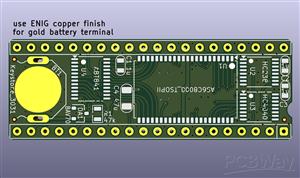

Order with ENIG finish so that the battery terminal is gold plated.
MiniNDP u1M - 1M RAMdisk for TRS-80 Model 100 & Kyotronic KC-85
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
For more important ordering information, please refer to
