Mailbox Desk Notification Display

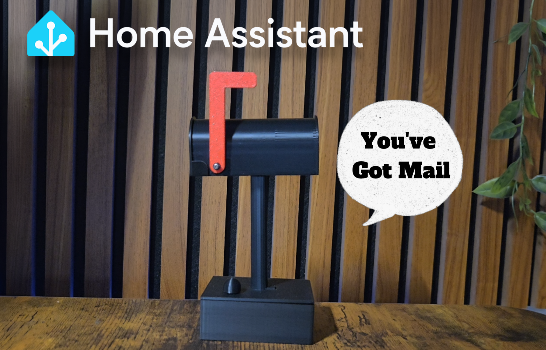

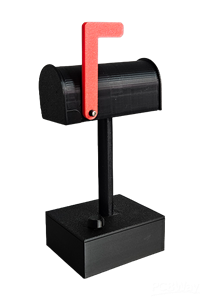

This project is a miniature mailbox desk display designed to work with Home Assistant. When post arrives in your real mailbox, the miniature mailbox raises its flag and plays the classic “You’ve Got Mail” sound to let you know. Once your post has been collected, the flag automatically lowers again.

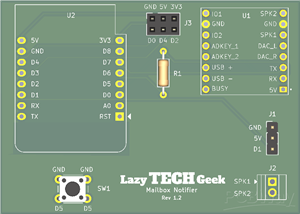

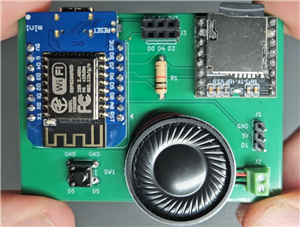

The carrier PCB brings together a D1 Mini ESP8266, DFPlayer Mini, servo, speaker and reset button into a compact and easy-to-assemble design. Combined with the 3D-printed enclosure, it creates a fun physical notification display for your smart mailbox.
Bill of Materials
As an Amazon Associate I earn from qualifying purchases at no extra cost to you.
The links below are suitable example components. These are generic parts, so you may find them cheaper elsewhere
- Wemo D1 Mini
- DF Player Mini
- SG90 Servo
- 30mm 8 Ohm 2W Speaker
- 1K Resistor
- PCB Headers Male and Female
- PCB Mount Screw Terminal Block, 2.54mm Pitch 2 Pin
GitHub Repo
Part 1: Automation Your Mailbox with Home Assistant
Part 2: Build the Smart Mailbox Desk Display
Mailbox Desk Notification Display
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
