Precise Angle Measurement in a Tiny Footprint

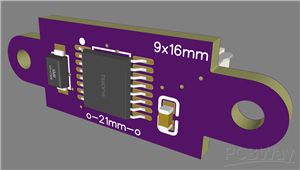

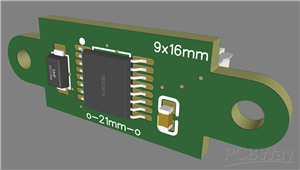

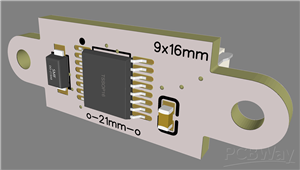

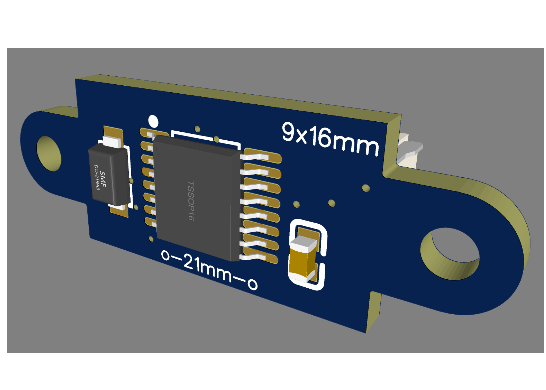

This Sensor PCB is an ultra-compact board designed for high-accuracy angle measurement using the MT6835 sensor. With a minimal footprint of just 21 x 9 mm, it is perfect for tight spaces in demanding applications such as robotics, encoder systems, rotary knobs, and industrial automation.

Dual Output Modes for Maximum Flexibility

• 21-bit absolute angle measurement via SPI interface for high-resolution position sensing
• 16-bit incremental quadrature output (A/B/Z) for easy integration with standard encoder systems
• Robust, contactless magnetic sensing ensures long-term reliability (no mechanical wear)

Plug & Play or Direct Wiring Options

You could use:

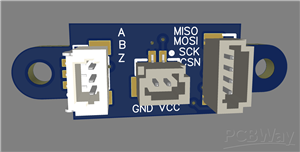

• JST SH 1.0mm pitch connectors for secure and easy plug-in connections

or

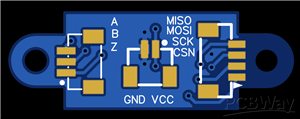

• Direct solderable pads (headers optional) for space-constrained or permanent installations

Ideal for Demanding Applications

• Ultra-small design fits in cramped enclosures
• Easy system integration thanks to industry-standard SPI and quadrature outputs

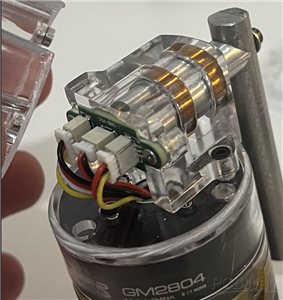

• Suitable for DIY projects, industrial encoders, and servo motor feedback systems

A perfect choice for engineers and makers who need high-resolution angle sensing in a compact, reliable package!
