MPU para bally

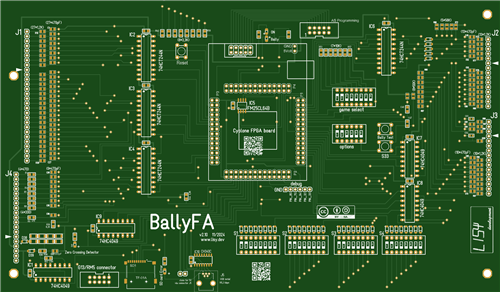

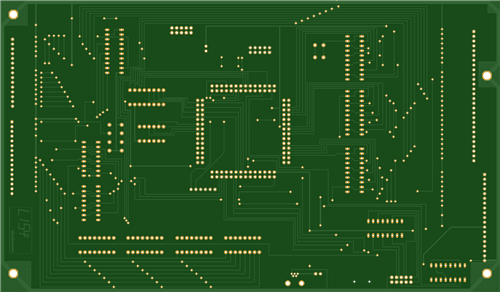

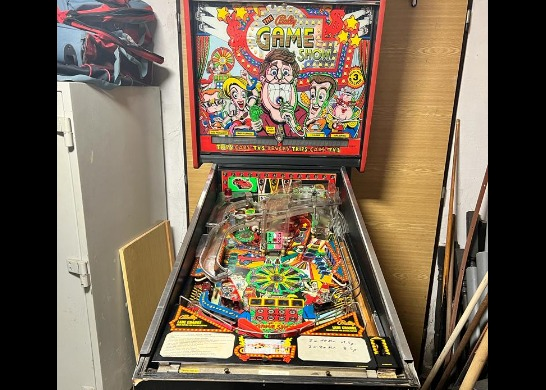

Hello, it is a motherboard (MPU) to replace the original ones from the 80s, it is for the pinball machines (arcade games from the 80s) to work, specifically the Bally and Stern brand machines.
Schematic and Layout
BallyFA_2_00_Final_SCH.pdf
CAD-Custom parts and enclosures
BallyFA_2_00_Final_PCB.pdf
Feb 03,2025
326 views
MPU para bally
placa base mpu bally finales de los 70
