Components
|
SLR-56VRT32Rohm Semiconductor
|
x 2 | |
|
CFR-25JR-52-220RYAGEO
|
x 1 | |
|
|
2x10 Dual Row Pin Header Connector |
x 1 |
Description

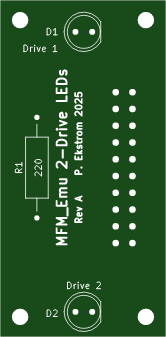

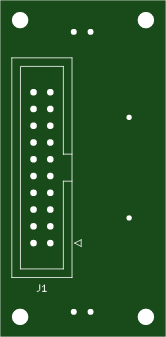

MFM Emulator drive activity LED board
This is a small board holding two drive activity LEDs and can be connected to the expansion connector of this MFM drive emulator.
Apr 04,2025
386 views
MFM Emulator drive activity LED board
This is a small board that can be connected to the expansion connector of the MFM Drive Emulator board and will show both drives activity.
386
0
0
Published: Apr 04,2025
Standard PCB
Download Gerber file 3
PCBWay Donate 10% cost To Author
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
