Description

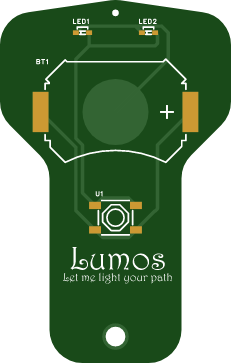

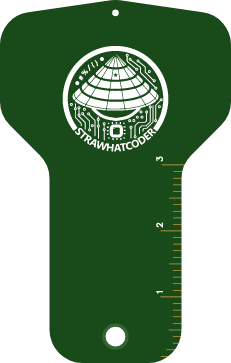

Lumos The DIY Keychain Flashlight
This is an easy soldering project for starters, double as a functional keychain and a great gift :)) with extreme dad-joke level's pun, lol. Have a good time assemble this one
May 03,2025
245 views
Lumos The DIY Keychain Flashlight

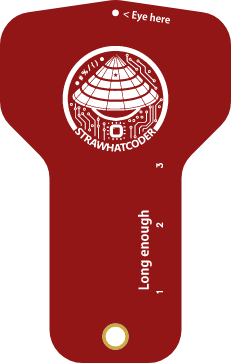

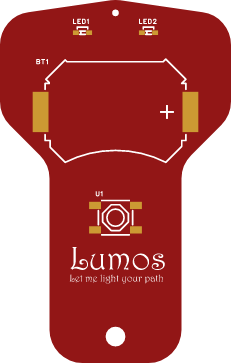

1 Layers PCB 55 x 60 mm FR-4, 1.6 mm, 1, HASL with lead, Red Solder Mask, White silkscreen
Good soldering practice for new comer, and it's functional
245
0
0
Published: May 03,2025
Standard PCB
Download Gerber file 0
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
File Last Updated: 2025/05/22 (GMT+8)
File update record
2025-05-2218:44:46
Gerber file is updated.
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
